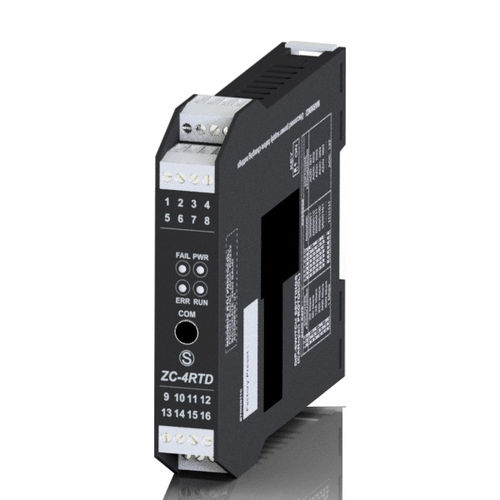

Analog input module ZC-4RTD
CANopenRS485for RTD sensors

analog input module
analog input module
Add to favorites
Compare this product


Characteristics

Signal type
analog
Bus
CANopen, RS485
Applications
for RTD sensors

Description

ZC-4RTD is an interface for RTD sensors (PT100, PT1000, PT500, Ni100) with 2,3 or 4 wires. The number of input is 4 and the each input is independent from each other. It’s a CANopen device and can be connected into a CANopen network. A 6-way galvanic isolation among Power supply // inputs // RS485 circuits assures the integrity of your datas (each input channel is isolated from the other circuits). Power Supply: - 10..40 Vdc, 19..28 Vac Max power consumption: - 1 W Insulation: - 1,5 kVac (6-way) Accuracy: - 0,05% Resolution: - 14 bit Channels: - 4 Pt100 range: - -200..+650°C Pt500 range: - -200..+750°C Pt1000 range: - -200..+210°C Ni100 range: - -60..+250°C Analog conversion response time: - < 20 ms Operating temperature: - -10..+65°C Dimension WxHxD: - 35x100x112 mm
