Analog input module Z-4RTD2

Modbus RTUUSBRS485

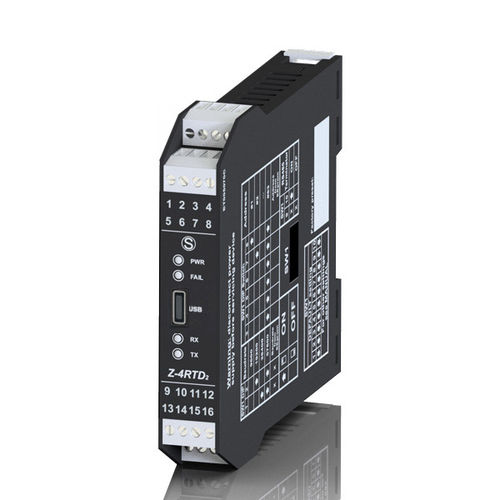

Z-4RTD2 is a converter for platinum or nickel RTD sensors (PT100, PT1000, PT500, Ni100 with 2,3 or 4 wires) with four independent and isolated measuring channels. The module is characterized by a 6-way isolation up to 1.5 kV (Power supply // Single input channel (x4) // RS485 serial communication). Power supply and serial bus wiring via the Z-PC-DINAL2-17.5 accessory (or Z-PC-DIN2-17.5 for existing BUS extensions) ensures a quick and easy DIN rail setup. Through the microUSB port on the front panel it is possible to configure the device via PC software EASY Setup. The configuration parameters can also be set via DIP-switch. Isolation - 1,5 kVac (6-way) Status Indicators - Power supply Error Dati transfer Data reception Operating Temperature - -20..+70°C (-20..+65°C UL) Storage temperature - -20..+85°C Resolution - 14 bit Accuracy class - 0,05 Stability - 0,04% Linearity - 0.025 % Thermal drift - < 50 ppm/K Connections - Removable 4-way screw terminals, max. cross-section 1.5mm, pitch 3.5mm Micro USB on the front Rear connector IDC10 for DIN rail IEC EN 60715 Mounting - For 35 mm DIN 46277 rail Data storage - EEPROM for configuration parameters, retention time 10 years Interfaces - RS485 2 wires Micro USB Speed - Up to 115.200 bps Protocols - ModBUS RTU slave Communication time - < 10 ms (@38.400 bps) Max distance - Up to 1.200 m Connectivity - Max 32 nodes Programming - Plug&play configuration (EASY SETUP) DIP switch System software (Z-NET4) Android app (EASY SETUP APP)
