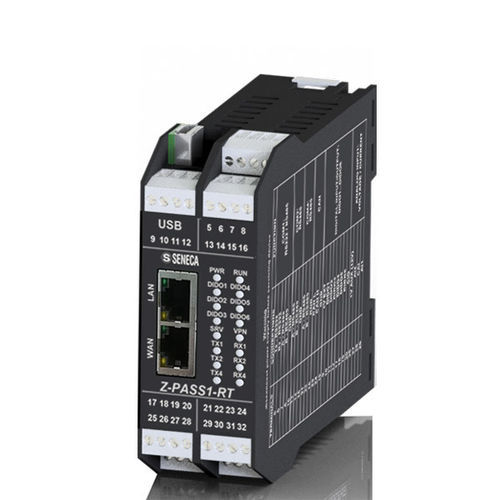

USB device server Z-PASS1-RT

LANModbus RTURS-422

Z-PASS1-RT is a highly reliable, secure EDGE device designed to handle virtually unlimited client nodes. This device features 2 analog inputs and 6 configurable general-purpose digital (DI/DO) channels, providing unparalleled versatility. With 2 Fast Ethernet ports, 3 serial ports, and 1 USB host 2.0 port, Z-PASS1-RT offers a wide range of connectivity options. Z-PASS1-RT supports a wide range of protocols ensuring full integration with third-party systems and enabling real-time communication. This advanced gateway is extremely secure, complying with the most stringent cybersecurity standards, including passing penetration tests according to OWASP, NIST 800-115 Risk Analysis, and IEC 62443 guidelines. Its configuration is intuitive and simple thanks to the built-in Web Server. In addition, Z-PASS1-RT is part of the LET'S platform, which means it can support Point-To-Point connections for Telehealth or Single LAN for Telecontrol, making it a versatile option for multiple industrial applications. Technical Specifications: - Power supply: 11..40 Vdc - Max. power consumption: 6 W - Max insulation: 1.5 kVac - LED status indicators: Power supply, Run, I/O status, VPN status, VPN connection, RX/TX serial communication, Link/Ethernet traffic - Protection class: IP20 - Connections: Plug-in terminal block 3.5 mm pitch, cable cross-section 1.5 mm²; Connector IDC10 power supply & bus communication - Flash Memory (data): ≥4 GB - RAM: 512 MB - Slot for SD card: Yes, Max 32GB - I/O channels: 6 DI/DO configurable, 2 AI (mA, V) - Operating temperature: -25..+65 °C - Dimensions (lxhxp): 35 x 102.5 x 111 mm - Weight: 240 g approx. - Case: PA6 glass fibre reinforced - Installation: For 35 mm DIN rail IEC EN 60715 - Certifications: CE, UKCA Communication: - Ethernet Ports (ETH1, ETH2): 2 Fast Ethernet 10/100Tx ports (RJ45) - Serial ports: 1 RS232/RS485 port (max 115kbps), 2 RS485 ports (max 115kbps) - USB ports: 1 USB host port (type A), 1 micro USB port for debugging - CAN port: 1 CAN port (terminals) - Serial Protocols: ModBUS TCP-IP Server/Client, ModBUS RTU Master/Slave, FTP/FTPs Client, sFTP Server, HTTP/HTTPS server, SMTPs client, Samba - IoT Protocols: MQTT, MQTTs, OPC UA Server, https, http post - Connectivity: Max Client TCP-IP 50, Max ModBUS RTU/ASCII slave nodes 128 per port, Memory area 2,000 variables (tags) Working Mode: - Gateway Functionality: ModBUS/Ethernet Serial Gateway + passthrough, Gateway shared memory - Gateway with Tag, Transparent Gateway/Serial Device Server, IIoT/Edge/MQTT Gateway - Routing: LAN router, Advanced Router - Nat 1:1 & Static Router - Advanced Features: Datalogger, Telephone alarm unit, Remote Access VPN Unit, Logical If-Then-Else Rules - HMI: Widgets and Screens on virtual HMI, Remote Display Safety: - Authentication: username/pass - Permission management: Supervisor/Operator/guest/FTP user - Encryption algorithm (data encryption): OpenVPN AES-256bit-CBC + Auth SHA256 bit or user selectable - Security Protocols: OpenVPN, SSL, HTTPS Server, MQTT over SSL/TLS, TLS 1.2 or higher - SSL/TLS certificates: TLS automated certificate management for HTTPS - Cybersecurity certificates (penetration testing): Yes, OWASP, NIST 800-115, Risk Analysis, IEC62443 Settings: - Programming: Web Server - Management Tools: SDD (Seneca Discovery Device), SESC (Seneca Ethernet to Serial Connection) VPN/IIoT: - VPN Management Software: OpenVPN, VPN Client Communicator - LET'S Support: Yes Shipping and Export Information: - Product Code: Z-PASS1-RT - Gross Weight: 0.2 kg - Origin: IT - CN (Combined Nomenclature): 85176200 - ECCN: 5A991
