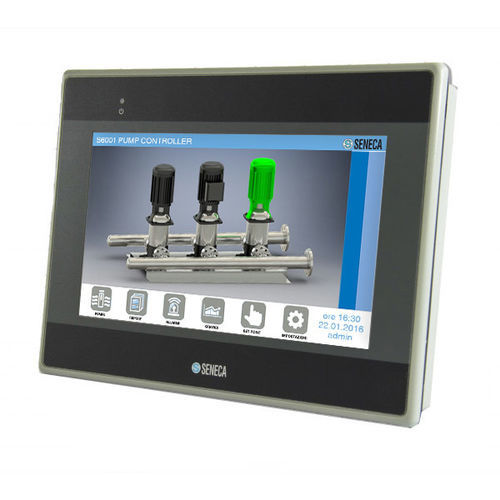

HMI with touch screen VISUAL4ET

5-wire resistive touch screenpanel-mount800 x 480

SENECA expands its offer for the Z-PC Series, the distributed I/O system launched on the market in 2000, with VISUAL, the new range of scalable and robust operator panels suitable for all kinds of industrial applications. The terminals can be combined with the most popular industrial controllers and other supervisory and automation systems. VISUAL4ET is a 7” operator panel with an aluminum case, equipped with a powerful Quad Core RISC, 1 GB RAM, a high-quality LED backlit display with 800x480 pixel resolution, 2 serial ports (No. 1 RS232 and No. 1 RS485) and 2 Ethernet 10/100 BaseT ports. Technical Features / Specifications: - 7” TFT LCD touchscreen, 800x480 resolution, 16:9 format - 450 cd/m2 brightness, 800:1 contrast, LED backlight >30,000 hours - 16.7 million colors, 4-wire resistive touchscreen, ±2% precision - 1x USB Host 2.0, 2x Ethernet 10/100, 1x RS232, 1x RS485 - 4 GB Flash, 1 GB RAM, Quad Core RISC processor, integrated RTC - 24 Vdc power supply, 350 mA absorption - Aluminium case, 200.3 x 146.3 x 34 mm, hole dimension 192 x 138 mm - Weight: 800 g (gross: 0.87 kg) - Operating temperature: -20..55°C - Protection: NEMA4 / IP66, fanless - Certifications: CE, UL - Configuration: EASY BUILDER PRO (yes), EASY ACCESS (optional), Dashboard (optional), CODESYS (optional) - Product code: VISUAL4ET - Origin: Taiwan (TW) - CN code: 85312040 - ECCN: 4A994
