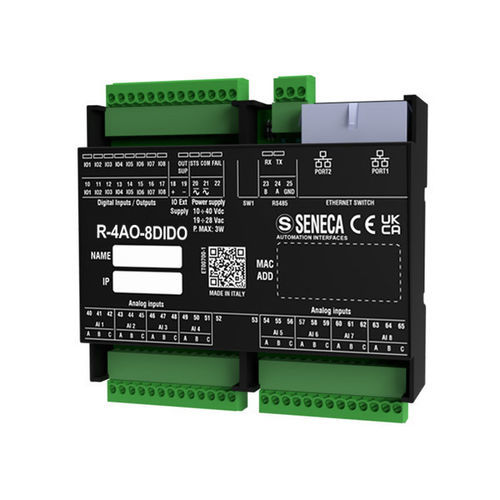

Digital I/O module R-4AO-8DIDO-2-P

analogEthernetModbus TCP

Product Overview: The R-4AO-8DIDO Profinet digital mixed module is designed to meet the needs of flexible cabling, limited installation space, and high I/O density applications with integrated networking capabilities. With two 10/100 Mbps Ethernet ports, this module offers 4 analog outputs and 8 digital channels, each individually configurable as a digital input or output. Configuration is possible via a web server with HTML5 support or a DIP switch. The module can be connected in Ethernet daisy chain mode with fault bypass, ensuring the continuity of the Ethernet connection even if one module fails. Configuration is facilitated through software such as softPLC CODESYS and the TiA Portal/Simatic Step7 design environment. Technical Data: - Power Supply: 10..40 Vdc; 19..28 Vac - Max Consumption: 5.6 W - Max Isolation: 1.5 kVac - Status Indicators: Power supply, Input / Output status, STS (IP address / DHCP), Ethernet TRF / LNK (Transit packets / Ethernet connection) - Protection Degree: IP20 - Operating temperature: -25..+65°C - Dimensions (WxHxD): 106 x 90 x 32 mm - Weight: 170 g - Housing: Pc/ABS material self-extinguishing UL94-V0, black color - Connections: 3.5mm pitch terminals, and double RJ45 connector - Mounting: On DIN EN 60715 rail, wall-mounted / panel-mounted - Programming: Integrated web server, DIP-switch - Special Features: Double Ethernet Daisy Chain connection, LAN fault bypass (the active connection between the two Ethernet ports of the device in case of power failure) - Interfaces: Nr.2 Ethernet ports (with LAN fault-bypass function) 100 baseT on RJ45 - 100 Mbps (TCP-IP) - Protocols: Profinet IO - Cable for Ethernet communication between devices: CAT5 or CAT5e unshielded - ModBUS Communication: Up to 64 nodes without repeater and max speed 115 kbps ANALOG OUTPUT CHANNELS - Number of Channels: 4 Analog - Type and Range: Voltage (±10 V) or current (0..20 mA) DIGITAL INPUT/OUTPUT CHANNELS - Number of Channels: 8 Digital Inputs/Outputs - Type and Range: Inputs = voltage: ON threshold: > 11 V; OFF threshold: < 4 V; Vmax: 24 V; Impedance: 9 kΩ Outputs = MOSFET, PNP; max. voltage/current: 0.2 A ; 12..24 V - Update times per channel: 4 ms STANDARD - Certifications: CE - Standards: EN61000-6-4, EN61000-6-2, EN61010-1 Key Features / Technical Specifications: - Profinet IO module with 4 universal analog outputs and 8 digital input/output channels - Flexible cabling and high I/O density - Ethernet daisy chain with fault bypass - Configuration via web server (HTML5) or DIP switch - Supports softPLC CODESYS and TiA Portal/Simatic Step7 - Power supply: 10..40 Vdc; 19..28 Vac - Max consumption: 5.6 W - Operating temperature: -25..+65°C - Protection degree: IP20 - Dimensions: 106 x 90 x 32 mm - Weight: 170 g - Housing: Pc/ABS UL94-V0, black - Mounting: DIN rail, wall or panel - 4 analog outputs (±10 V or 0..20 mA) - 8 digital I/O (individually configurable) - CE certified, EN61000-6-4, EN61000-6-2, EN61010-1
