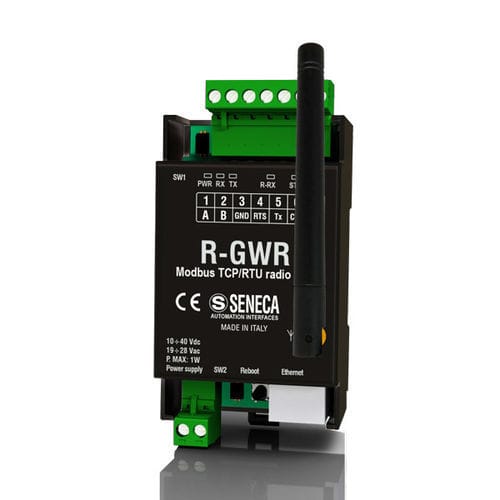

Industrial gateway R-GWR

wirelessEthernetserial

R-GWR is a system for interfacing and measuring industrial, civil, or environmental parameters. The device creates a network of remote sensors connected via LoRa radio technology (863-865 MHz) and accessible through ModBUS RTU/TCP-IP protocol. R-GWR acts as a ModBUS TCP-IP server and ModBUS RTU slave. It operates as a radio hub capable of managing up to 32 sensors, each able to acquire: an integrated temperature/humidity signal, a generic digital/analog input (0-30 Vdc) from a terminal, a counter @16bit with max frequency 1Hz. The sensors are powered by lithium batteries with a lifespan of up to 36 months depending on configuration. Data transmission from the sensor to the device occurs: at the programmed time, on an event, via an integrated pairing button. R-GWR supports Ethernet and the ModBUS TCP-IP protocol for connection with remote management systems and up to 8 TCP-IP client nodes. LoRa technology ensures low power consumption, longer battery life, lower power involved, and reduced installation costs for sensors. The communication range depends on usage conditions; LoRa ensures deep penetration in urban, rural, or indoor areas, reaching up to 500 meters. The minimum update interval of measured values is 30 seconds. The device is easily programmable via DIP switch and web server. Main applications include remote transmission of industrial and civil measurements and monitoring of production sites, environments, and industrial/residential buildings. Technical Specifications: - Power Supply: 10..40 Vdc; 19..28 Vac - Power consumption: Max 1 W - Battery type and lifetime: Lithium, autonomy from 12 to 36 months - Status Indicators: Power supply, Rx-Tx serial communications, Sensors assigned, Sensors in error - Protection degree: IP20 - Operating temperature: -20..+70°C - Connections: Screw terminals, removable 7-way screw (5mm pitch), removable 2-way screw (5mm pitch), Ethernet connector - Communication: 1 Fast Ethernet 100 Tx port (RJ45 front), 1 RS232/RS485 serial port switchable, baud rate max 115k - Connectivity: Up to 8 TCP-IP Clients - Supported protocols: ModBUS TCP-IP server, ModBUS RTU slave - Dimensions (WxHxD): 53.3 x 90 x 32.2 mm - Weight: 80 g - Housing: PC / ABS self-extinguishing UL94-V0 - Installation: On IEC EN 60715 DIN rail or wall-mounted - Certification: CE - Standards: ETSI EN 301 489-1 v.2.2.3, ETSI EN 301 409-3 v.2.1.1, EN 60950 - Radio Technology: LoRa - Minimum Measurement Interval: 30 seconds - Security: AES 128bit - Frequency: 863-865 MHz (Nominal: 863.110 MHz), Bandwidth 25 KHz, Max Power +14 dBm - Sensitivity: Up to -146 dBm - Max Number of coupled sensors: 32 - DIP switch: Yes - Webserver: Yes - SDD (Seneca Discovery Device): Yes - Firmware Update: via Web Server - Advanced Diagnostics: Yes
