Analog I/O module R-8AI-8DIDO-2

digitalEthernetLAN

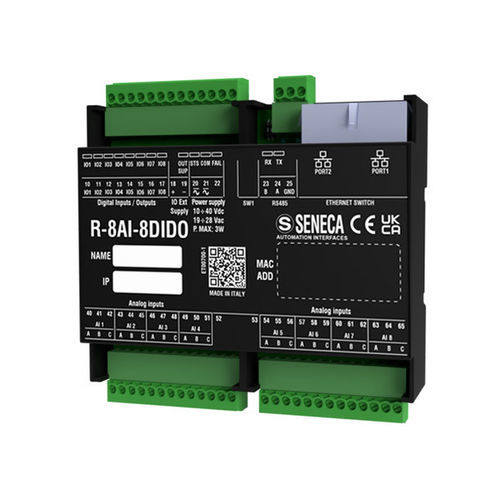

Ethernet module with 8 analog inputs featuring 24-bit ADC and 8 digital inputs/outputs. The R-8AI-8DIDO module includes two 10/100 Mbps Ethernet ports supporting ModBUS TCP-IP and RS485 communication with ModBUS RTU protocol. Designed for flexible wiring, limited installation space, and high I/O density applications, it integrates Ethernet networking. The module offers 8 high-resolution (24-bit) analog inputs and 8 digital channels, configurable as inputs or outputs. Configuration is possible via a web server with HTML5 support or a DIP switch. The IP address, MAC address, and firmware version can be managed using the Seneca Discovery Device (SDD) tool. It supports Ethernet daisy chain mode with fault bypass, ensuring connectivity even if a module fails. The advanced "ModBUS Passthrough" function allows redirection of Modbus TCP-IP requests to RS485, acting as a gateway. Technical Specifications: - Power Supply: 10..40 Vdc; 19..28 Vac - Max Consumption: 3 W - Max Isolation: 1.5 kVac - Status Indicators: Power supply, Input/Output status, STS (IP address/DHCP), RX/TX (RS485), Ethernet TRF/LNK - Protection Degree: IP20 - Operating temperature: -25..+65°C - Dimensions (WxHxD): 106 x 90 x 32 mm - Weight: 170 g - Housing: Pc/ABS material self-extinguishing UL94-V0, black color - Connections: 3.5mm pitch terminals, and double RJ45 connector - Mounting: On DIN EN 60715 rail, wall-mounted / panel-mounted - Programming: Integrated web server, DIP-switch - Special Features: Double Ethernet Daisy Chain connection, LAN fault bypass, Modbus Passthrough (TCP-IP to RS485), IP/MAC/Firmware identification and configuration by SDD tool - Interfaces: 2x Ethernet ports (LAN fault-bypass) 100 baseT on RJ45 - 100 Mbps (TCP-IP); 1x RS485 port on terminals M23-M24-M25 - 115.200 bps (RS485) - Protocols: ModBUS RTU, ModBUS TCP-IP, HTTP - Cable for Ethernet communication: CAT5 or CAT5e unshielded - ModBUS Communication: Up to 64 nodes without repeater, max speed 115 kbps Analog Input Channels: - Number of Channels: 8 Analog - Type and Range: Voltage: -30 V ÷ +30 V; -150 mV ÷ +150 mV; Current: -24 mA ÷ +24 mA; Thermocouple: J, K, T, E, N, R, S, B, L; Thermoresistor Pt100 on AI1: -200 °C ÷ +650 °C (only for cold junction comp.) - ADC resolution: 24 bit Digital Input/Output Channels: - Number of Channels: 8 Digital Inputs/Outputs - Type and Range: Inputs = voltage: ON threshold: > 11 V; OFF threshold: < 4 V; Vmax: 28 V; Impedance: 9 kΩ; Outputs = MOSFET, PNP; max. voltage/current: 0.2 A ; 9..28 V Standards: - Certifications: CE - Homologations and Standards: EN61000-6-4, EN61000-6-2, EN61010-1
