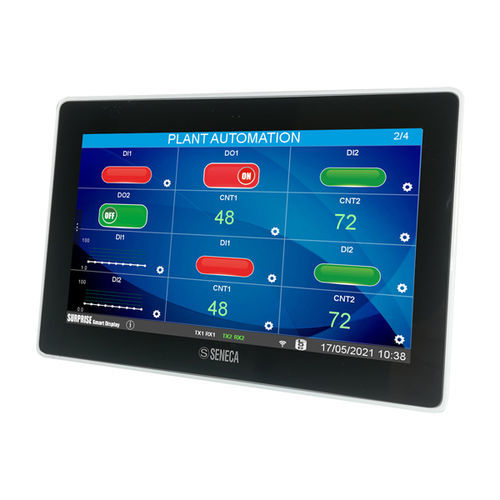

Projected capacitive touchscreen HMI SSD-S-L-V-I

panel mount800 x 480ARM

Product Overview: SSD-S is a next-generation IIoT IEC611331-3 controller with a 7'' touchscreen HMI panel. The device integrates a powerful ARM microprocessor, a high-brightness display with a proximity sensor, dual Ethernet ports, integrated I/O channels, a WiFi module, and two serial ports. SSD is a multi-purpose softPLC that includes advanced gateway functionality, data logger, alarm management, Wi-Fi router, logic functions, VPN technology, remote assistance / remote control functions, and a convenient widget-based data display that requires no programming skills. SSD-S generates integrated HMI and client/server connectivity solutions for building systems of varying complexity and with different simultaneous access points to the plant or individual machine. The device also integrates with data analysis, supervision, and management systems, ERP and MES, through the use of IIoT protocols such as MQTT and OPC-UA. SSDS is ideal for providing digitized and interconnected industrial solutions to maximize the productivity and efficiency of your plants under Industry 4.0 standards. Technical Data: - Power supply: 24 Vdc/ac +/- 10% - Power consumption: Max 10 W, 16 VA - Display: 7" LCD TFT, anti-scratch glass - Resolution: 800 x 480 pixel, 16M colors, capacitive - Protection degree: IP64 - Ethernet ports: 2 Fast Ethernet 10/100Tx - Serial ports: 1 RS232/RS485 commutable, 1 RS485 - USB ports: 1 micro USB host, 1 micro USB for debug - WiFi: 802.11 b/g/n, 2.4 GHz, 17dBm, WEP/WPA/WPA2 - Protocols: ModBUS, MQTT, OPC-UA, IEC 61850, SNMP, MeterBUS, S7 - Security: OpenVPN, SSL, HTTPS, TLS 1.2+ - Energy Protocols: IEC60870-101/104, IEC61850 - Data Encryption: OpenVPN AES-256bit-CBC + Auth SHA256 - Max TCP-IP Clients: 50 - Max Variables/TAGs: 2,000 - Max Modbus RTU/ASCII Slaves: 128 - Max VPN Clients: P2P: 1; Single LAN: 496 - Programming: Web Server, Z-NET, IDE Straton - Operating temperature: -20°C..+55°C - Dimensions: 192x132x32 mm - Cutout: 157x102 mm - Weight: 420 g - Housing: ABS, black - Installation: Panel mount - Special features: Modbus Gateway, Transparent Gateway, Serial Tunnelling, IoT/Cloud gateway, Datalogger, Serial Sniffer, Wi-Fi AP, Redundancy, Alarm management, VPN, Microcontroller logic, LAN/WAN switch, NAT 1:1, APN identifier, 2 DI/DO channels - Certification: CE - Norms: EN 300328, EN 301489-17, EN 301489-1, EN 60368-1, EN 62311
