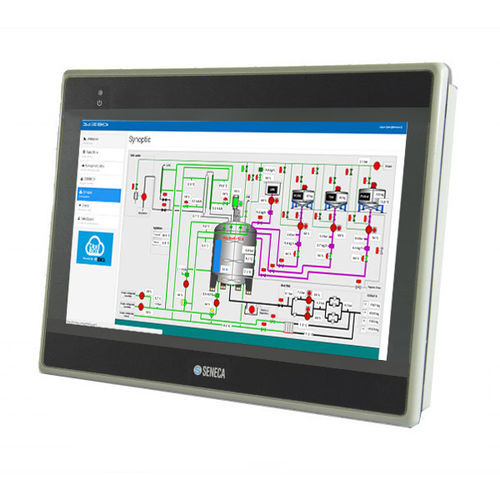

HMI with touch screen VISUAL8E

resistive touch screenpanel-mount1024 x 600

10.1’ HD touchscreen HMI terminal with Ethernet interface - SENECA expands its offering for the Z-PC Series with VISUAL, a new range of scalable and robust operator panels suitable for all types of industrial applications. The terminals can be combined with the most popular industrial controllers and other supervisory and automation systems. Size: 10.1’ TFT LCD Resolution: 1024x600 Format: 16:9 Brightness: 350 cd/m2 Contrast: 500:1 Retroillumination: LED, > 50,000 hours Colours: 16.7 million Touchscreen: 4 wires, resistive Precision: ±2% COMMUNICATION USB Host 2.0: 1 Ethernet 10/100: 1 Ethernet 10/100/1000: 1 RS232: 1 RS485: 1 CAN bus support: Yes Wi-Fi: Optional TECHNICAL DATA Flash: 4 GB RAM: 1 GB Processor: Quad Core RISC RTC: Integrated Power supply: 24 Vdc Absorption: 1A @ 24 Vdc Casing: Plastic Dimensions (lxhxp): 271 x 213 x 36.4 mm Hole dimensions: 260 x 202 mm Weight: 1200 g Operating temperature: 0..50°C Grade of protection: NEMA4 / IP65 Fanless: Yes Certification: CE, UL CONFIGURATION AND PROGRAMMING EASY BUILDER PRO: Yes EASY ACCESS: Optional Dashboard: Optional CODESYS: Optional Shipping and Export Information Product code: VISUAL8E Gross weight: 0.87 kg Origin: TW CN (Combined Nomenclature): 85312040 ECCN: 4A994 Mandatory Accessories CS-DB9M-TIP-V: RS485 serial cable (DB9M / test leads) for connection with VISUAL HMI with DB9F socket CE-RJ45-RJ45-R | PM001450: Ethernet cable (right) ( RJ45 / RJ45 ) Discounts 1 or more: 5% discount 7 or more: 10% discount 11 or more: 15% discount Technical Specifications Summary 10.1” TFT LCD, 1024x600, 16:9 format Brightness: 350 cd/m2, Contrast: 500:1 LED backlight, 16.7 million colors 4-wire resistive touchscreen, ±2% precision USB Host 2.0, Ethernet 10/100/1000, RS232, RS485, CAN bus support, Wi-Fi (optional) 4 GB Flash, 1 GB RAM, Quad Core RISC processor Integrated RTC, 24 Vdc power supply, 1A absorption Plastic casing, 271 x 213 x 36.4 mm, 1200 g Operating temperature: 0..50°C, NEMA4 / IP65, Fanless CE, UL certified Configuration: EASY BUILDER PRO (yes), EASY ACCESS (optional), Dashboard (optional), CODESYS (optional)
