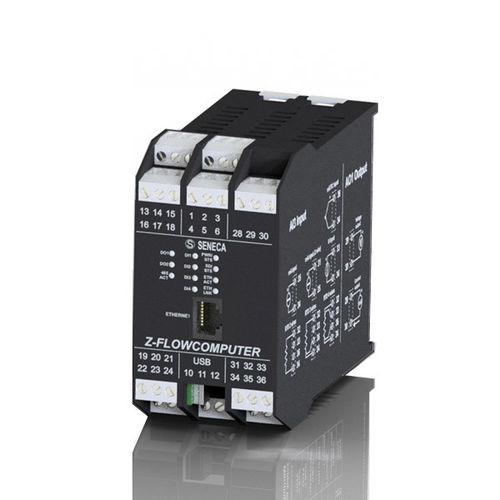

Gas flow computer Z-FLOWCOMPUTER-B

for liquidsfor waterfor steam

Product Description: Z-FLOWCOMPUTER-B is a flow computer for water, steam, and gas applications. The unit is equipped with 4 PNP/NPN digital inputs, 2 voltage/current analog inputs, 1 universal analog input, 2 relay digital outputs, and 1 analog voltage/current output. The versatility of this controller, guaranteed by different standards of input signals, allows its use in applications such as corrected flow or energy efficiency calculation for white certificates issue. Water and steam applications compressibility factor is calculated conforming to international standard IAPWS IF-97, while flow rate totalization and compensation for both NATURAL and REAL GAS are calculated according to SGERG88 ISO 12213-3, AGA8 GROSS, AGA8 92-DC ISO 12213-2, RK and RKS algorithms calculation standards. Technical Data: - CPU power supply: 11..40 Vdc (or 19..28 Vac) - Power consumption: Max 4 W (7.2 W display) - Insulation: 1,500 Vac - LED Status indicators: Power supply, Serial communication, Link and Ethernet, SD card use, Digital inputs - Protection degree: IP20 - Operating Temperature: -10..+50 °C - Dimensions WxHxD: 52.5 x 100 x 112 mm - Connections: Removable terminal block, max wire size 2.5 mm² - Installation: 35 mm DIN rail guide (IEC EN 60715) - Ethernet port: 1 x 10/100Tx on RJ45 front port - Serial port: 1 x RS232/485 switchable serial port, baud rate max 115k on terminals - USB port: 1 x USB on side connector - Supported protocols: ModBUS TCP-IP Server - Input channels: 1 digital input PNP, NPN (max voltage input 30Vdc), 2 analog input 0 - 20 mA / 0 - 30 Vdc, 1 universal input V / mA / RTD / TC - Output channels: 2 SPDT relay outputs, max 2A 250 Vac, 1 analog output V – mA @14 bit - Configuration: Webserver, datalogger and via software Shipping and Export Information: - Product code: Z-FLOWCOMPUTER-B - Gross weight: 0.94 kg - Origin: IT - CN (Combined Nomenclature): 90268020 - ECCN: 4A994 Key Features / Technical Specifications: - Flow computer for water, steam, and gas applications - 4 PNP/NPN digital inputs - 2 voltage/current analog inputs - 1 universal analog input - 2 relay digital outputs - 1 analog voltage/current output - Compressibility factor calculation for water and steam (IAPWS IF-97) - Flow rate totalization and compensation for natural and real gas (SGERG88 ISO 12213-3, AGA8 GROSS, AGA8 92-DC ISO 12213-2, RK, RKS) - Power supply: 11..40 Vdc or 19..28 Vac - Max power consumption: 4 W (7.2 W with display) - Insulation: 1.5 kVac - Protection degree: IP20 - Operating temperature: -10..+50 °C - Dimensions: 52.5 x 100 x 112 mm - DIN rail mounting (35 mm, IEC EN 60715) - Ethernet, serial (RS232/485), and USB ports - Supported protocol: ModBUS TCP-IP Server - Configuration via webserver, datalogger, or software
