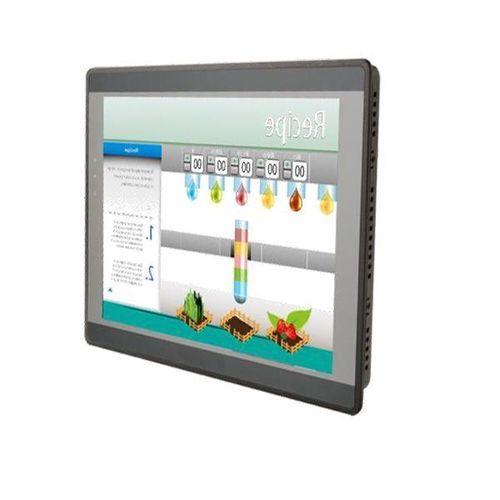

Resistive touch screen HMI VISUAL12E

panel-mount1024 x 768dual-core

15" HMI panel touchscreen with Ethernet port and aluminium housing SENECA expands its offer for the Z-PC with VISUAL, the new range of operator panels suitable for the most common industrial controllers and supervisory/automation systems. - Size: 15’ WVA - Resolution: 1024x768 - Format: 4:3 - Brightness: 350 cd/m2 - Contrast: 2500:1 - Retroillumination: LED > 70,000 hours - Colours: 16.2 million - Touchscreen: 4-wire, resistive - Precision: ±2% COMMUNICATION - USB Host 2.0: 1 - Ethernet 10/100: 1 - Ethernet 10/100/1000: 1 - RS232: 1 - RS485: 1 - SD Card Slot: SD/DSDHC GENERAL DATA - Flash: 4 GB - RAM: 1 GB - Processor: Quad Core RISC - RTC: Integrated - Power supply: 24 Vdc - Absorption: 1.3A@24Vdc - Casing: Aluminium - Dimensions (lxhxp): 366 x 293 x 57 mm - Hole dimensions: 352 x 279 mm - Weight: 2740 g - Operating temperature: 0..50°C - Grade of protection: UL Type4X / NEMA4 / IP66 - Fanless: Yes - Certification: CE, UL CONFIGURATION AND PROGRAMMING - EASY BUILDER PRO: Yes - EASY ACCESS: Optional - Dashboard: Optional - CODESYS: Optional Shipping and Export Information - PRODUCT CODE: VISUAL12E - GROSS WEIGHT (kg): 0.87 - ORIGIN: TW - CN (Combined Nomenclature): 85312040 - ECCN: 4A994 Mandatory Accessories - CS-DB9M-TIP-V: RS485 serial cable (DB9M / test leads) for connection with VISUAL HMI with DB9F socket - CE-RJ45-RJ45-R | PM001450: Ethernet cable (right) ( RJ45 / RJ45 ) Technical Features / Specifications - Display: 15” WVA, 1024x768, 4:3 format, 350 cd/m2 brightness, 2500:1 contrast, LED backlight >70,000h, 16.2 million colors - Touchscreen: 4-wire resistive, ±2% precision - Interfaces: 1x USB Host 2.0, 1x Ethernet 10/100, 1x Ethernet 10/100/1000, 1x RS232, 1x RS485, SD/DSDHC card slot - Memory: 4 GB Flash, 1 GB RAM - Processor: Quad Core RISC - RTC: Integrated - Power: 24 Vdc, 1.3A@24Vdc - Housing: Aluminium, Dimensions: 366 x 293 x 57 mm, Hole: 352 x 279 mm, Weight: 2740 g - Operating temperature: 0..50°C - Protection: UL Type4X / NEMA4 / IP66 - Fanless: Yes - Certifications: CE, UL - Configuration/Programming: EASY BUILDER PRO (Yes), EASY ACCESS (Optional), Dashboard (Optional), CODESYS (Optional)
