Analog I/O module R-4RTD-8DIDO-2

digitalModbusEthernet

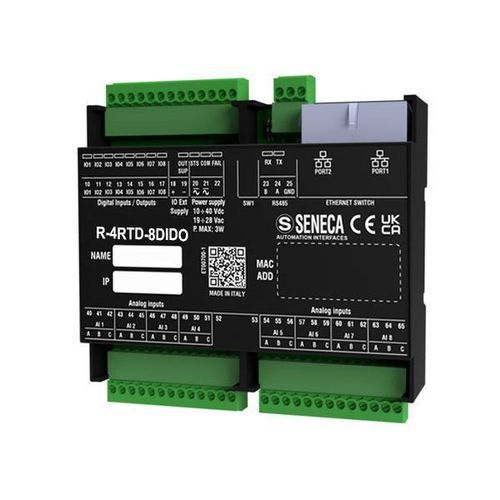

Ethernet module with 4 inputs from thermoresistances and 8 digital inputs/outputs The R-4RTD-8DIDO mixed digital module is equipped with two 10/100 Mbps Ethernet ports, supporting both Modbus TCP/IP and RS-485 serial communication with the Modbus RTU protocol. Like all models in the R Series, it is designed to meet flexible cabling requirements, limited installation space, and high I/O density applications with integrated Ethernet networking. R-4RTD-8DIDO offers 4 thermoresistance inputs and 8 digital channels, each of which can be individually configured as a digital input or output. Configuration is via a web server with HTML5 support or DIP switches. The IP address, MAC address, and firmware version associated with the module can be identified or configured on the LAN using the SDD (Seneca Discovery Device) tool. The module can be connected in Ethernet daisy chain mode with fault bypass to ensure Ethernet connection even if a module in the chain fails. In addition, the device has an advanced “ModBUS Passthrough” function, which allows the module to redirect requests from Modbus TCP-IP to RS485, effectively acting as a gateway. 4-input Ethernet module for thermoresistances and 8 digital inputs/outputs. Technical Specifications: - Power supply: 10..40 Vdc; 19..28 Vac - Max power consumption: 3 W - Isolation: 1.5 kVac multi-way, even between RTD inputs - LED status indicators: Power, Input/Output status, STS (IP address / DHCP), RX / TX (Data receiving/transmitting on RS485), Ethernet TRF / LNK (Packet transit / Ethernet connection) - Protection rating: IP20 - Operating temperature: -25..+65°C - Storage temperature: -30..+85°C - Humidity: 10..90% non-condensing - Dimensions (WxHxD): 106 x 90 x 32 mm - Weight: 170 g - Enclosure: PC / ABS self-extinguishing UL94-V0 material, black color - Connections: 3.5 mm pitch terminal block, max wire section 1.5 mm²; 2x Ethernet 100Base-T ports on RJ45; 1x RS485 port on terminals - Installation: On DIN rail EN 60715, wall/panel mount - Programming: Integrated Web Server, DIP Switch - Special functions: Dual Ethernet Daisy Chain, LAN fault bypass, Up to 32 Peer-to-Peer Rules (I/O Mirror), Counters with frequency measurement, Modbus Passthrough (TCP-IP to RS485) - Data memory: FeRAM for counter backup - Certifications: CE, UKCA RTD INPUTS - Number of channels: 4 independent RTDs - Type and Range: - PT100 (EN 60751/A2, ITS-90), -200..+650°C - PT500 (EN 60751/A2, ITS-90), -200..+750°C - PT1000 (EN 60751/A2, ITS-90), -200..+210°C - NI100 (DIN 43760), -60..+250°C - CU50 (GOST 6651-2009), -180..+200°C - CU100 (GOST 6651-2009), -180..+200°C - NI120 (DIN 43760), -60..+250°C - NI1000 (DIN 43760), -60..+250°C - ADC: 24-bit DIGITAL INPUTS/OUTPUTS - Number of channels: 8 configurable digital inputs/outputs - Type and Range: Voltage: ON threshold: > 11 Vdc; OFF threshold: < 4 Vdc; Vmax: 24 Vdc; Impedance: 9 kΩ; Compliant with IEC61131-2 type 3; MOSFET, PNP; Max voltage/current: 0.2 A; 12 ÷ 24 Vdc - Counters: 8 retentive 32-bit counters, max frequency 20 Hz COMMUNICATION - Interfaces: 2x Ethernet ports (with LAN fault-bypass function) 100Base-T on RJ45; 1x RS485 port on terminals - Speed: Up to 115,200 bps (RS485) / 100 Mbps (TCP-IP) - Protocols: ModBUS RTU, ModBUS TCP-IP, http - Ethernet communication cable: Unshielded CAT5 or CAT5e - ModBUS communication: Up to 128 nodes without a repeater and a max speed of 115 kbps
