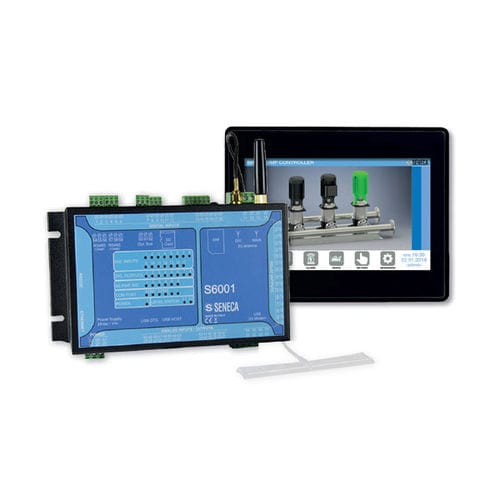

Level and flow measurement pump controller S6001 PC

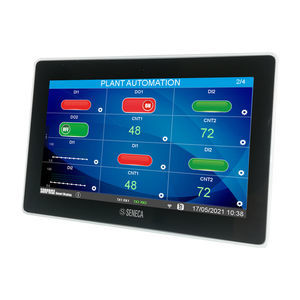

S6001 Pump Controller (version S6001-PC-4GWW) is a CPU for pumping systems and pressurisation units capable of handling from 2 up to 6 pumps (*), with constant flow, level and pressure regulation. S6001 PC, based on Straton IDE, is a CPU/RTU fully compatible with the LET'S platform (VPN/IoT technology for Industry 4.0 by SENECA) and allows also via SMS to: receive commands (on/off, auto/man) to pumping stations; calculate the estimated flow rate based on the characteristic curve of motorized users; send information on the operating and alarm status following SMS commands. The configuration of the S6001 PC does not require any knowledge of the Straton development environment as it is done via the wizard configurator. The user interface is ergonomic and intuitive via HMI touchscreen 7", it allows complete device management as well as immediate consultation of alarms, trends and historical data. HMI power supply - 18..32 Vdc / 0,3 A HMI information - TFT Color/LED 7" touchscreen Resolution 800x400 px Insulation - 1.500 Vac LED status indicators - Power Supply Serial communication Ethernet communication PLC status GSM-UMTS signal Protection degree - IP20 Operating temperature - -10..+65°C Dimensions LxHxD - 190x105x60 mm Connections - Removable terminals, max conductors dimension 2,5 mm2 Mounting - Panel mount or DIN guide 35 mm (IEC EN 60715) with included adapters Ethernet port - Nr. 1 10/100 Ethernet 10/100Tx (RJ45) port Serial ports - Nr. 2 RS485 port USB ports - Nr. 1 USB host port Modem/router - 4G LTE with worldwide bands support
