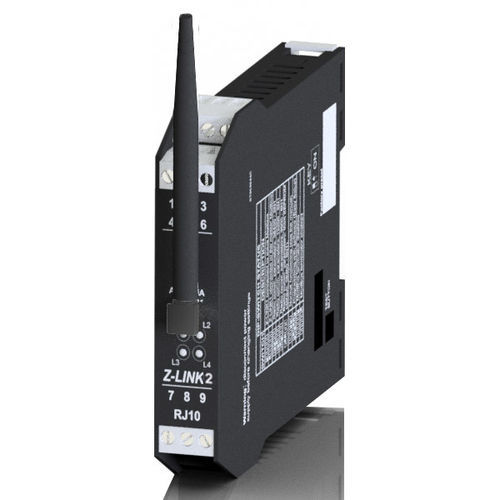

UHF radio module Z-LINK2-LO

LoRa

Product Description: Z-LINK2 is an 869 MHz radio device designed for transparent radio remonetization of communications operating with the ModBUS RTU protocol and exploiting the physical layer of LoRa (Long Range) transmission technology. Z-LINK2 enables communication between Z-PC series I/O modules and ModBUS devices based on a UHF radio modem. It features easy wiring of the power supply and serial bus via the CEI EN 60715 omega rail bus. The module is easily configured via DIP switches or EASY SETUP PC software. It also features 2 serial ports (1 RS232, 1 RS485) and an isolation level of 1,500 V between communication and power supply. Compliant with ETSI standards and the AES 128 bit dynamic data encryption protocol, Z-LINK2 can work in bridge, repeater, and remote I/O modes with point-to-point and point-to-multipoint connections. LoRa technology enables the radio modem to achieve high coverage (up to 1 km with an external antenna), 25 mW transmission power, enhanced interference immunity, and high sensitivity. Note: The A-GSM-MG antenna is not a mandatory accessory but is strongly recommended for better signal quality. The product is not compatible with radio modems of previous generations. Technical Data: - Power supply: 10..40 Vdc; 19..28 Vac - LED status indicators: Power supply, data transmission via bus, data transmission via radio, installation test - Isolation: 1,500 Vac - Hot swapping: Yes - Operating band: G3, Annex 1, h1.7 ERC 70-03 (centre band 869.525MHz) - Modulation: LoRa® (CSS Modulation - Chirp Spread Spectrum) - Crypting: AES 128 bit - Interfaces: N°1 RS232, N° 1 RS485 - Protocol: ModBUS RTU, LoRa (Z-LINK2-LO, physical layer) - Output power (transmitter): 25 mW - Receiver (type): CLASS 2 - Connections: Removable 3-way screw terminals, 5mm pitch - Rear connector IDC10 for DIN rail 46277 - Connector for standard SMA antenna front - Micro USB frontal - Operating modes: Bridge, IO remote, IO repeater - Programming: EASY SETUP, DIP-switch - Coverage: Up to 1,000 m in the open field - Dimensions: 17.5 x 100 x 112 mm - Operating temperature: -20..+65°C - Weight: 110 g - Housing: PA6, color black - Mounting: 35mm DIN rail IEC EN60715 in an upright position Shipping and Export Information: - PRODUCT CODE: Z-LINK2-LO - GROSS WEIGHT (kg): 0.16 - ORIGIN: IT - CN (Combined Nomenclature): 85176200 - ECCN: 5A991 Key Features / Technical Specifications: - 869 MHz LoRa radio modem - RS232 and RS485 interfaces - Supports ModBUS RTU protocol - LoRa (Long Range) transmission technology - Easy wiring via CEI EN 60715 omega rail bus - Configurable via DIP switches or EASY SETUP PC software - Isolation: 1,500 V between communication and power supply - ETSI compliant, AES 128 bit encryption - Bridge, repeater, and remote I/O modes - Point-to-point and point-to-multipoint connections - Coverage up to 1 km (with external antenna) - Transmission power: 25 mW - High interference immunity and sensitivity - Dimensions: 17.5 x 100 x 112 mm - Operating temperature: -20..+65°C - Weight: 110 g - DIN rail mounting
