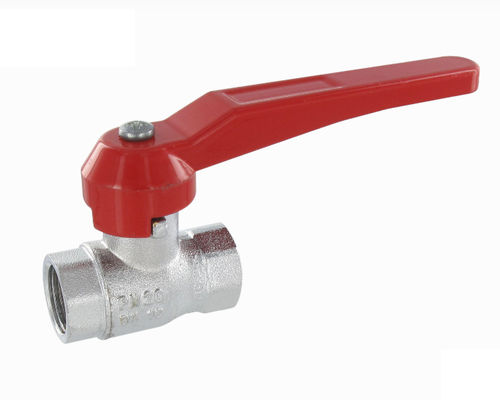

Ball valve 100 seriesleverfor waterfor oil
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- lever
- Media
- for water, for oil, for compressed air
- Body
- female-female, male-female, male-male, screw-in, nickel-plated brass, PTFE, aluminum, NBR
- Applications
- for industrial applications
- Number of channels
- 3-way, 2-channel
- Other characteristics
- high-pressure, full-flow, high-temperature
- Pressure
Min.: 0 bar
(0 psi)Max.: 40 bar
(580.2 psi)- Temperature
Min.: -20 °C
(-4 °F)Max.: 120 °C
(248 °F)
Description
Ball valves - 100 series
Areas of application : compressed air, oil, water
Technical features
- nickel plated brass body
- chrome plated brass ball
- ball sealings : PTFE
- aluminium handle
- oil-proof rubber packings NBR
- maximum working pressure : 20 or 40 bar
- working temperature : -10°C ÷ 120°C or -40°C ÷ 170°C
