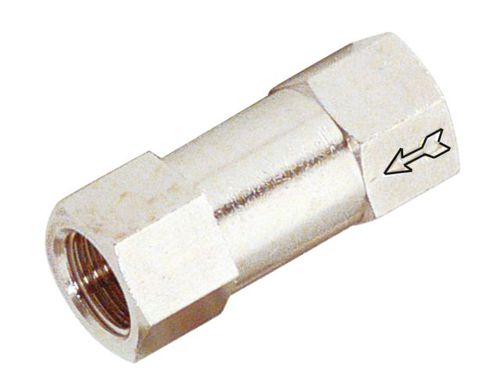

Piston check valve VFUfor compressed airthreadedscrew-in
Add to favorites
Compare this product
Characteristics
- Type
- piston
- Fluid
- for compressed air
- Body
- threaded, screw-in
- Applications
- high-temperature
- Material
- brass
- Other characteristics
- spring
- Pressure
Max.: 8 bar
(116 psi)Min.: 2 bar
(29 psi)- Temperature
Max.: 200 °C
(392 °F)Min.: -20 °C
(-4 °F)
Description
Non-return valves series
Areas of application : compressed air
Technical features :
- working pressure : 2 ÷ 8 bar
- opening pressure : 0.5 bar
- working temperature : -15°C ÷ 200°C
Materials :
- body in nickel plated brass
- oil-proof rubber packings NBR or FKM (Viton)
- outlets with threads
- BSP threads
