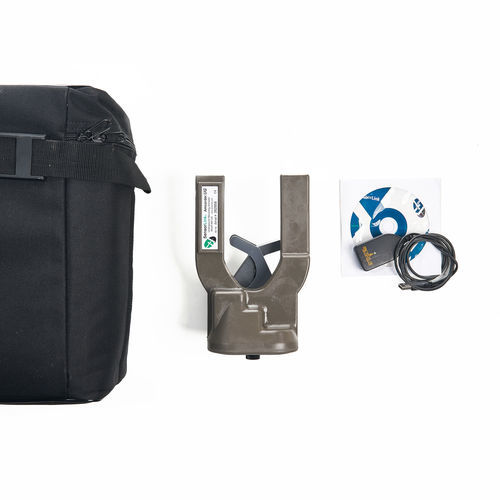

Underground mining ammeter 920 UG

Underground mining ammeter - 920 UG - SENSORLINK
Underground mining ammeter - 920 UG - SENSORLINK
Add to favorites
Compare this product

Characteristics

Domain
for underground mining

Description

Product Overview
  • Model 920-UG Underground Amcorder

Range of Operation
  • Voltage: 0 - 69 kV
  • Amps: 1 - 1000 A
  • Frequency: 60 Hz (57 to 63 Hz) or 50 Hz (47 to 53 Hz) Models Available

Resolution
  • Amps 1.0 to 99.9 A: 0.1 A

Accuracy
  • Amps: ± 1% ± 2 counts

Mechanical
  • Sensor Opening: up to 2.5 in, 6.35 cm
  • Weight: 1.8 lbs, .82 kg
  • Dimensions: 8.78 in x 5.38 in x 3.74 in (22.3 cm x 13.7 cm x 9.5 cm)
  • Operating Temperature: -22 to +140 °F (-30 to +60 °C)
  • Submersible: Submersible to 6' of water
  • Housing: Shock & water resistant molded urethane
  • Hot stick mounting: Shotgun Style Hot stick
  • Battery: 9 volt alkaline

Software Requirements
  • Software Application: Softlink by SensorLink
  • System Requirements: Windows XP, VISTA, Windows 7, Windows 8, Windows 10

Technical Specifications
  • Model: 920 UG
  • Rated: 1000A, 69kV
  • Sensor opening: 2.5"
