Portable voltmeter 6-910-3

Portable voltmeter - 6-910-3 - SENSORLINK
Portable voltmeter - 6-910-3 - SENSORLINK
Add to favorites
Compare this product

Characteristics

Portability
portable
Voltage

69 V

Description

Product Overview
  • Varcorders are rated 2000A, 69KV, with a 1.3" sensor opening

Model

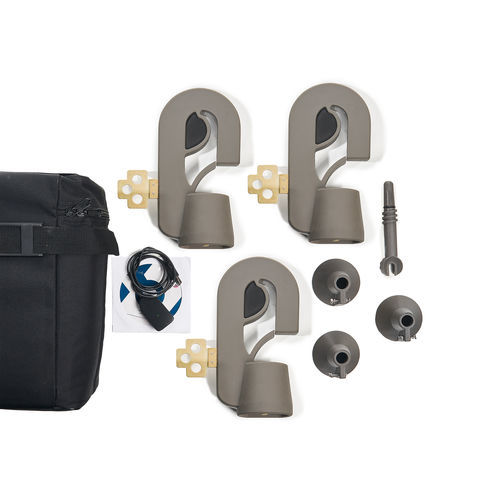

  • Model 6-910-3 Three Phase Overhead Varcorder Kit

Range of Operation
  • Voltage: 69 kV
  • Current: 1 to 2000 A
  • Frequency: 60 Hz (57 to 63 Hz) or 50 Hz (47 to 53 Hz) Models Available

Resolution
  • Amps 1 to 99.9 A: 0.1 A
  • Amps 100 to 2000 A: 1 A
  • Power Factor +.80 to -.80: .01
  • Accuracy: ± 1% ± 2 counts

Mechanical
  • Weight: 1.5 lbs, .68 kg
  • Sensor Opening: Up to 1.3 in, 3.3 cm
  • Dimensions: 9.75 in x 4.75 in x 3 (24.77 cm x 12.07 cm x 7.62 cm)
  • Operating Temperature: -22 to +140 °F (-40 to +60 °C)
  • Hot stick mounting: Shotgun Style Hot stick
  • Battery: 9 volt alkaline

Software Requirements
  • Software Application: Softlink by SensorLink
  • System Requirements: Windows XP, VISTA, Windows 7, Windows 8, Windows 10

Technical Specifications
  • Rated Current: 2000A
  • Rated Voltage: 69KV
  • Sensor Opening: 1.3"
  • Frequency: 50/60 Hz models available
  • Accuracy: ± 1% ± 2 counts
  • Operating Temperature: -22 to +140 °F (-40 to +60 °C)
  • Battery: 9V alkaline
  • Dimensions: 9.75 in x 4.75 in x 3 in (24.77 cm x 12.07 cm x 7.62 cm)
  • Weight: 1.5 lbs (0.68 kg)
