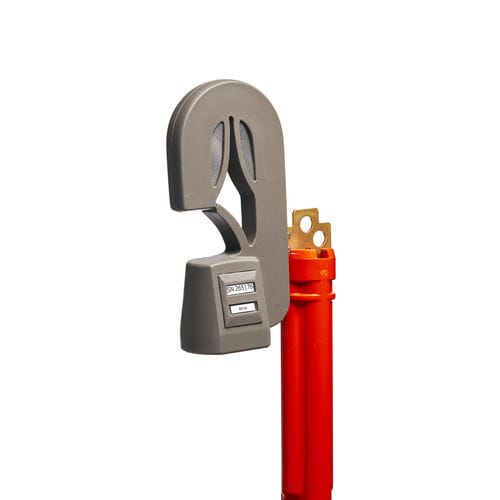

To hoist ammeter 920
Add to favorites
Compare this product
Characteristics
- Mounting
- to hoist
Description
Product Details
Range of Operation
Resolution
Mechanical
Software Requirements
Technical Specifications / Features
- Model 920 Overhead Amcorder
Range of Operation
- Voltage: 0 - 69 kV
- Current: 1 - 1000 A
- Frequency: 60 Hz (57 to 63 Hz) or 50 Hz (47 to 53 Hz) Models Available
Resolution
- Amps 1.0 to 99.9 A: 0.1 A
- Amps 100-1000 A: 1 A
- Accuracy: ± 1% ± 2 counts
Mechanical
- Sensor Opening: up to 1.3 in, 3.3 cm
- Weight: 1.5 lbs, .68kg
- Dimensions: 9.75 in x 4.75 in x 3 in (24.77 cm x 12.07 cm x 7.62 cm)
- Operating Temperature: -4 to +140 °F (-20 to +60 °C)
- Housing: Shock & water resistant molded urethane
- Hot stick mounting: Shotgun Style Hot stick
- Battery: 9 volt alkaline
Software Requirements
- Software Application: Softlink by SensorLink
- System Requirements: Windows XP, VISTA, Windows 7, Windows 8, Windows 10
Technical Specifications / Features
- Rated 1000A, 69KV, with a 1.3" sensor opening
- Model #: 920
