Characteristics
- Measured value
- voltage, current, power factor
- Configuration
- mobile
- Other characteristics
- with display
Description
Product Overview

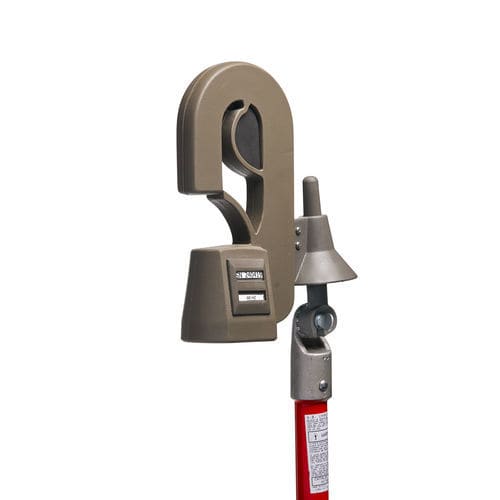

Model 910 Overhead Varcorder
Resolution
Mechanical
Software Requirements
Technical Specifications
- Varcorders are rated 2000A, 69KV, with a 1.3" sensor opening
Model 910 Overhead Varcorder
- Range of Operation
- Voltage: 69 kV
- Current: 1 to 2000 A
- Frequency: 60 Hz (57 to 63 Hz) or 50 Hz (47 to 53 Hz) Models Available
Resolution
- Amps 1 to 99.9 A: 0.1 A
- Amps 100 to 2000 A: 1 A
- Power Factor +.80 to -.80: .01
- Accuracy: ± 1% ± 2 counts
Mechanical
- Weight: 1.5 lbs, .68 kg
- Sensor Opening: Up to 1.3 in, 3.3cm
- Dimensions: 9.75 in x 4.75 in x 3 (24.77 cm x12.07 cm x 7.62 cm)
- Operating Temperature: -22 to +140 °F (-40 to +60 °C)
- Hot stick mounting: Shotgun Style Hot stick
- Battery: 9 volt alkaline
Software Requirements
- Software Application: Softlink by SensorLink
- System Requirements: Windows XP, VISTA, Windows 7, Windows 8, Windows 10
Technical Specifications
- Model: 910
- Rated Current: 2000A
- Rated Voltage: 69KV
- Sensor Opening: 1.3"
- Frequency: 50/60 Hz models available
- Accuracy: ± 1% ± 2 counts
- Power Factor Range: +.80 to -.80
- Weight: 1.5 lbs (.68 kg)
- Dimensions: 9.75 in x 4.75 in x 3 in (24.77 cm x 12.07 cm x 7.62 cm)
- Operating Temperature: -22 to +140 °F (-40 to +60 °C)
- Battery: 9V alkaline
- Software: Softlink by SensorLink (Windows XP, VISTA, 7, 8, 10)
