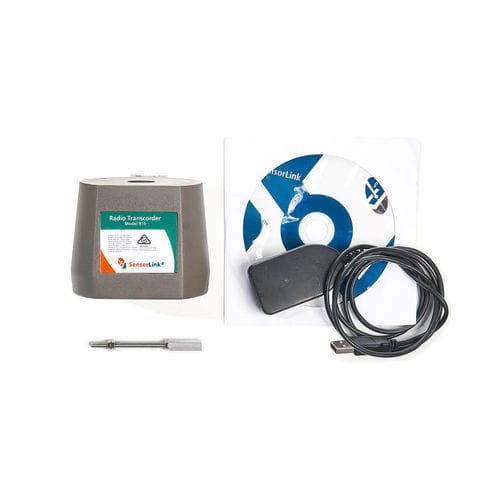

2.4 GHz radio module 6-915-1
Add to favorites
Compare this product
Characteristics
- Options
- 2.4 GHz
Description
Product Overview
Range of Operation
Radio
Mechanical
Software Requirements
Technical Specifications
- Model 6-915-1
- Single Phase Radio Transcorder Kit for Radio Communication with Overhead Recorders
Range of Operation
- Voltage: 0 - 69 kV
Radio
- Frequency: ISM 2.4 GHz
- Transmit Power: 63 mW, 18 dBm, Inquire for EU or Japan
- Transmit Distance, Line of Sight: 300 Feet, 100 meters
Mechanical
- Weight: 7.2 oz, 0.203 kg
- Dimensions: 2.75 in x 3.09 in x 3.46 in, 6.98 cm x 7.84 cm x 8.79 cm
- Operating Temperature: -22 to +140 F, -30 to +60 C
- Housing: Shock resistant molded urethane
- Battery: Two 9V Alkaline or Lithium per unit
Software Requirements
- Software: Softlink by SensorLink
- System Requirements: Windows XP, VISTA, Windows 7, Windows, Windows 10
Technical Specifications
- Model: 6-915-1
- Voltage Range: 0 - 69 kV
- Radio Frequency: ISM 2.4 GHz
- Transmit Power: 63 mW, 18 dBm
- Transmit Distance: 300 ft (100 m) line-of-sight
- Weight: 7.2 oz (0.203 kg)
- Dimensions: 2.75 x 3.09 x 3.46 in (6.98 x 7.84 x 8.79 cm)
- Operating Temperature: -22 to +140 F (-30 to +60 C)
- Housing: Shock resistant molded urethane
- Battery: Two 9V Alkaline or Lithium per unit
- Software: Softlink by SensorLink
- Compatible OS: Windows XP, VISTA, 7, 10
