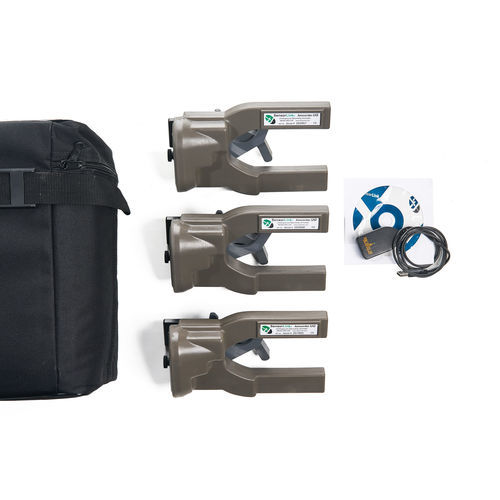

AC/DC ammeter 6-920UG-3three-phaseanalogkit
Add to favorites
Compare this product
Characteristics
- Technology
- AC/DC, three-phase, analog
- Mounting
- kit, clamp-on
- Domain
- for underground mining
Description
Product Overview
Range of Operation
Resolution
Accuracy
Mechanical
Software Requirements
Technical Specifications / Features
- Model 6-920UG-3 Three Phase Underground Amcorder Kit
Range of Operation
- Voltage: 0 - 69 kV
- Amps: 1 - 1000 A
- Frequency: 60 Hz (57 to 63 Hz) or 50 Hz (47 to 53 Hz) Models Available
Resolution
- Amps 1.0 to 99.9 A: 0.1 A
Accuracy
- Amps: ± 1% ± 2 counts
Mechanical
- Sensor Opening: up to 2.5 in, 6.35 cm
- Weight: 1.8 lbs, .82 kg
- Dimensions: 8.78 in x 5.38 in x 3.74 in (22.3 cm x 13.7 cm x 9.5 cm)
- Operating Temperature: -22 to +140 °F (-30 to +60 °C)
- Submersible: Submersible to 6' of water
- Housing: Shock & water resistant molded urethane
- Hot stick mounting: Shotgun Style Hot stick
- Battery: 9 volt alkaline
Software Requirements
- Software Application: Softlink by SensorLink
- System Requirements: Windows XP, VISTA, Windows 7, Windows 8, Windows 10
Technical Specifications / Features
- Three phase underground ammeter kit
- Rated 2000A, 69KV, with a 2.5" sensor opening
- Submersible and rugged design for underground applications
