Pneumatic fitting SO 20511-8-1/4for compressed airfor chemicalsbarbed
Add to favorites
Compare this product
Characteristics
- Applications
- for chemicals, pneumatic, for compressed air
- Attachment
- barbed
- Norms
- BSPT
- Material
- polyvinylidene fluoride
- Other characteristics
- for hoses
- Diameter
8 mm
(0.315 in)- Operating pressure
10 bar
(145.04 psi)
Description
Overview

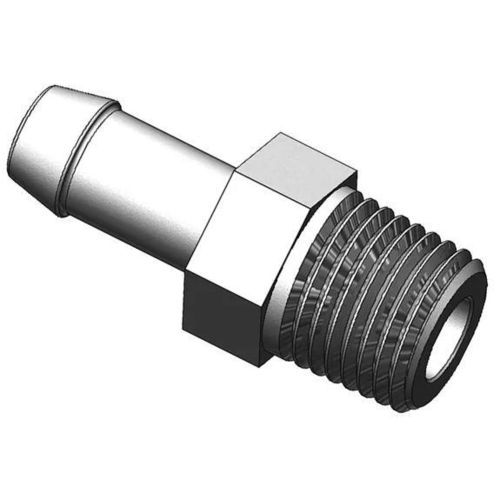

Straight hose barb fitting in PVDF for threaded connections between flexible hoses and equipment. Designed for mounting on a male thread to provide mechanical connection and reliable sealing in industrial fluid circuits.
Technical specifications
Applications
Installation & compatibility
Ordering
Straight hose barb fitting in PVDF for threaded connections between flexible hoses and equipment. Designed for mounting on a male thread to provide mechanical connection and reliable sealing in industrial fluid circuits.
Technical specifications
- Type: Straight barb (hose barb fitting)
- Material: PVDF
- Thread: R1/4" male (M)
- Recommended hose diameter: Ø8 mm
- Maximum pressure (Pmax): 10 bar
- Reference: SO 20511-8-1/4
- Brand: SERTO
Applications
- Chemical and industrial fluid lines
- Laboratory and dosing installations
- Pneumatic systems and technical water circuits
Installation & compatibility
- Mount on R1/4" male thread; verify seal type and compatibility
- Use an appropriate hose clamp for Ø8 mm
- Temperature and chemical compatibility depend on PVDF specifications
Ordering
- Supplier reference: SO 20511-8-1/4 — specify brand SERTO when ordering
