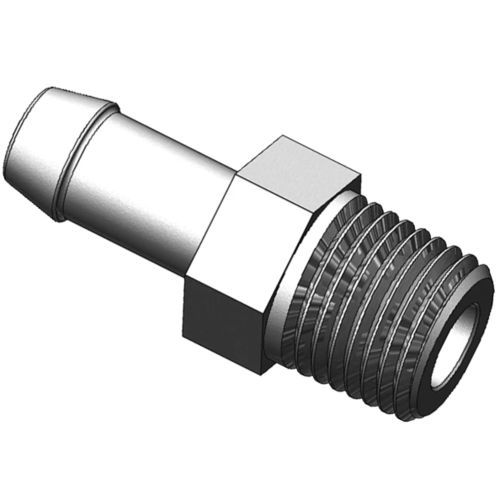

Barbed fitting SO 20511

PVDFmalechemically resistant

Overview
Straight hose barb fitting in PVDF for connection to male R3/8 M threads on Ø12 mm hoses. Designed for applications requiring high chemical resistance with a maximum operating pressure of 10 bar.

Applications

• Chemical processing lines
• Laboratory and analytical equipment
• Ultrapure water systems and industrial fluid handling
• Piping for corrosive media

Key features / technical specifications

• Product type: Hose barb fitting — straight connector
• Material: PVDF (polyvinylidene fluoride)
• Thread: R3/8 M (male)
• Hose diameter: Ø12 mm
• Maximum pressure (Pmax): 10 bar
• Reference / model: SO 20511-12-3/8
• Manufacturer: SERTO

Installation and compatibility

• Use with flexible hoses Ø12 mm and appropriate hose clamps
• Suitable for aggressive chemical media; verify compatibility with the specific fluid
• Ensure proper thread sealing for pressurized connections
