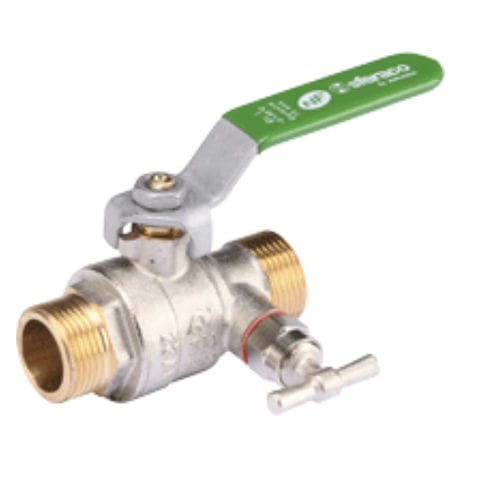

Ball valve 544 series

leverfor watermale-male

The device has a wide range of high quality features including an anti-blow stem, solid ball, a rilled ball which is specifically used to avoid water stagnation and a full bore fabrication. It has a 10-year manufacture warranty enough to guarantee high quality performance and good reputation. The body marking of the device has a NF^CS,PN on one face and a logo, DN, fabrication date and an on and off handle marking. The device is equipped with a reversible handle green color RAL 6029. It also has an anti-corrosion flat handle or butterfly aluminium handle as additional option. SPECIFICATIONS ; • - Fabrication accordmg to NF079 • - 10 years manufacture warranty (the installation defects and wear defects are not covered by the guarantee) • - Made m Italy • - Full bore • - Anti blow-out stem • - Solid bail • - Drilled bail ( to avoid water stagnation between bail and body ) up to DN 1"l/2 • - PTFE G200 packmg + O ring EPDM 4270 on stem • - Anti-corrosion fiat Steel handle or butterfly aluminium handle • - Body marking : Made in Italy. NF.ACS.PN on one face and Logo.DN.fabrication date Year/Month. brass quality on the other face • - Handle marking : On/Off. Airaga . Made in Italy . Mm and max Température . acoustic group I • - Réversible handle green color RAL 6029 • - Possible with locking device for DN1/2* and 3/4“ ( Ref. 9810404 ) USE: • - Watering. water distnbution. heatmg. drinkable water. air-conditioning • - Min Température Ts : - 5°C • - Max Température Ts : + 90°C ( +110°c temporarily dunng 1 hour max )
