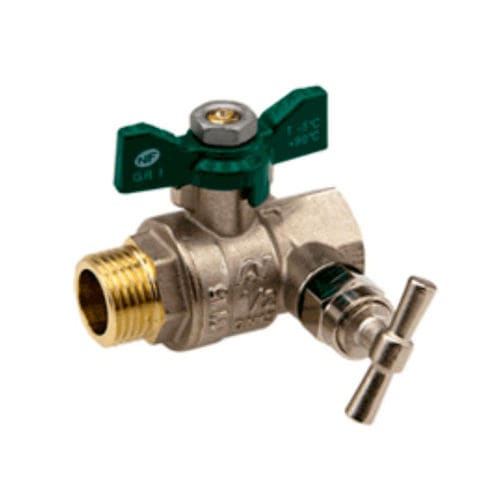

Nickel-plated brass valve 550 series

ballmanualfor water

This product is a full bore water distributor made in Italy. It is equipped with solid ball, anti blow-out stem, reversible green handle RAL 6029, locking device RAL 6029, and rilled ball to avoid water stagnation. The product comes up with an anti-corrosion flat steel handle or butterfly aluminum handle made for the specific needs of consumers. It includes 10 years manufacture warranty but the installation defects and wear defects are not covered by the guarantee. This full bore water distributor is available with a locking device that is constructed in DN 1/2 and DN 3/4 as well. SPECIFICATIONS ; • - Fabrication accordmg to NF079 • - 10 years manufacture warranty (the installation defects and wear defects are not covered by the guarantee) • - Made m Italy • - Full bore • - Anti blow-out stem • - Solid bail • - Drilled bail ( to avoid water stagnation between bail and body ) up to DN 1"l/2 • - PTFE G200 packmg + O ring EPDM 4270 on stem • - Anti-corrosion fiat Steel handle or butterfly aluminium handle • - Body marking : Made in Italy. NF.ACS.PN on one face and Logo.DN.fabrication date Year/Month. brass quality on the other face • - Handle marking : On/Off. Airaga . Made in Italy . Mm and max Température . acoustic group I • - Réversible handle green color RAL 6029 • - Possible with locking device for DN1/2* and 3/4“ ( Ref. 9810404 ) USE: • - Watering. water distnbution. heatmg. drinkable water. air-conditioning • - Min Température Ts : - 5°C • - Max Température Ts : + 90°C ( +110°c temporarily dunng 1 hour max )
