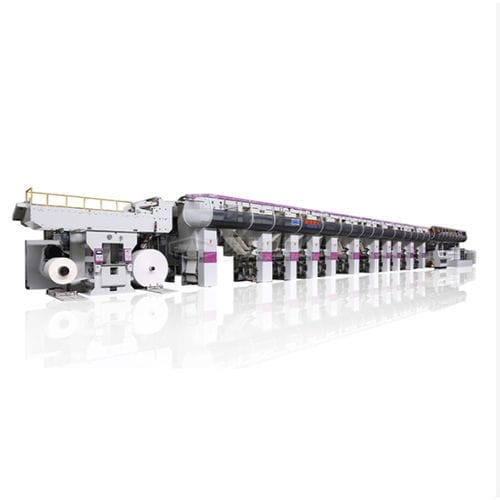

Rotogravure printing press

for paperfor labelsfor packaging

Overview
Printing machine designed for cigarette packaging and configured to meet tobacco industry requirements. The Cigarette Packaging Special Rotogravure Printing Machine supports multiple packaging formats and substrate types through precision-driven components and configurable modules.

Key selling points

• 920 mm printing width and ten color stations for complex graphics and metallic effects
• Maximum production speed up to 300 m/min with high registration stability
• Material range from 30–40 gsm tipping paper to 90–350 g/m² folding box board and aluminum laminates

Features and capabilities
Electronic Line Shaft (ELS) drive with independent servo motors per unit ensures accurate color-to-color registration. Web tension control to ±0.3 kg maintains stable handling across thin tipping papers and heavy boards. Adjustable drying system supports solvent-based and water-based inks with controlled airflow and temperature. Inline real-time defect detection identifies streaks, color drift and hazing to reduce waste.

Applications

• Hard pack production: printing and inline embossing/creasing on 210–250 g/m² folding box board
• Tipping paper processing: handling 30–40 gsm tipping paper with sensitive tension control
• Soft pack and inner liners: processing aluminum foil laminates and metallized papers with temperature-controlled drying

Technical Specifications at a Glance
Printing width: 920 mm
Material compatibility: paper 90–350 g/m²; tipping paper 30–40 gsm; folding box board 210–250 g/m²; aluminum foil laminates; metallized papers
Maximum speed: 300 m/min
Color stations: 10
Registration accuracy: ±0.1 mm
Tension control precision: ±0.3 kg
Drive: Electronic Line Shaft with independent servo motors per printing unit
Drying: adjustable drying system for solvent-based and water-based inks
Inline inspection: real-time defect detection (streaks, color drift, hazing)

Manufacturing, QA and Support
Produced in a vertically integrated facility with over 50 machining centers and an assembly workshop of approximately 30,000 m². Annual output of around 220 machines. Quality checks include high-speed strobe registration tests, rub-resistance testing for metallic inks and barcode grading for traceability. R&D and engineering teams provide installation, operator training, spare parts and after-sales technical assistance.

Commercial name / Technical specifications

• Commercial name: Cigarette Packaging Special Rotogravure Printing Machine
• Printing width: 920 mm
• Material compatibility: paper 90–350 g/m²; tipping paper 30–40 gsm; folding box board 210–250 g/m²; aluminum foil and metallized papers
• Maximum printing speed: 300 m/min
• Color stations: 10
• Registration accuracy: ±0.1 mm
• Tension control precision: ±0.3 kg
• Drive: Electronic Line Shaft with independent servo motors per printing unit
• Drying: adjustable drying system for solvent-based and water-based inks
• Inline inspection: real-time defect detection
• Applications: cigarette packaging, cigarette label printing, tipping paper, hard pack and soft pack production
• Quality assurance: high-speed strobe verification, rub-resistance testing, barcode grading
• Manufacturing capacity: ~220 machines/year in a 30,000 m² assembly workshop; vertical integration with >50 machining centers
• R&D: team of >100 senior engineers for continuous development
