Rotogravure printing press Zhixuan 3.0plus

for paperfor plastic filmfor labels

Overview

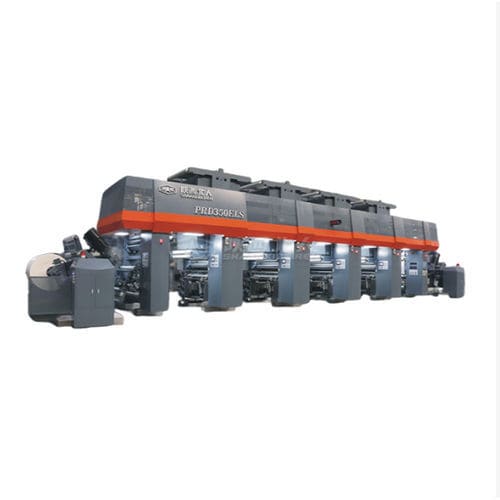

The Zhixuan 3.0plus High-Speed Rotogravure Printing Machine is engineered for decorative paper and flexible packaging production. Printing width: 1330–2200 mm. Material range: 30–120 g/m². Maximum speed: up to 350 m/min, suitable for high-volume continuous runs.

Introduction
Manufactured by Shaanxi Beiren Printing Machinery Co., Ltd., the Zhixuan 3.0plus combines robust mechanical design with precise electronic control. It is intended for industrial production lines requiring consistent color quality and high throughput.

Key benefits

• High production speed (up to 350 m/min) for large orders
• Stable handling of wide-format substrates (30–120 g/m²)
• Accurate registration control (≤ ±0.10 mm) via ELS and independent servo drives
• Reduced material waste and consistent color reproduction on long runs
• Shorter downtime through simplified maintenance and quick changeover

Technical specifications

• Model / Series: Zhixuan 3.0plus
• Printing width: 1330 mm – 2200 mm
• Maximum printing speed: 350 m/min
• Material range: 30–120 g/m² (wide-format paper and similar substrates)
• Registration accuracy: ≤ ±0.10 mm
• Control system: Electronic Line Shaft (ELS) with independent servo motors
• Drying system: High-velocity air circulation with temperature monitoring
• Applications: Decorative paper, flexible packaging, specialty materials, labels and graphics

Precision registration control
The Electronic Line Shaft (ELS) with independent servo motors ensures repeatable color registration across the web and maintains alignment during acceleration and deceleration, minimizing rejected rolls.

Superior speed management
Designed for sustained operation at high line speeds, the machine delivers smooth acceleration/deceleration profiles and precise web tension control to protect substrates and image integrity.

Intelligent drying systems
Extended drying hoods with high-velocity air circulation and temperature monitoring provide controlled solvent evaporation and protect heat-sensitive decorative papers and films.

Quick changeover capability
Cylinder loading and pneumatic chucking systems allow rapid job changes, reducing setup time and operator effort for cylinder installation.

Applications

• Decorative paper for furniture, flooring and wall coverings
• Flexible packaging films requiring high-quality print
• Specialty wide-format papers and substrates
• Labels and graphic applications needing high-resolution reproduction

Shaanxi Beiren advantage

• Decades of manufacturing experience and a large installed base
• Experienced engineering team supporting continuous product improvement
• Multiple precision machining centers and controlled assembly facilities
• Comprehensive quality control and responsive technical support

Investment protection and support
The machine is built with quality components to minimize unplanned downtime. Shaanxi Beiren offers technical support, spare parts supply and training to ensure reliable long-term operation.

FAQ (selected)

• Q: What is the maximum printing speed and width? A: Up to 350 m/min; printing widths from 1330 mm to 2200 mm.
• Q: Which materials can be processed? A: Designed for decorative papers (30–120 g/m²), flexible packaging films, specialty papers, labels and similar wide-format substrates.
• Q: What registration accuracy is achievable? A: The ELS with independent servo motors provides registration accuracy of ≤ ±0.10 mm.
