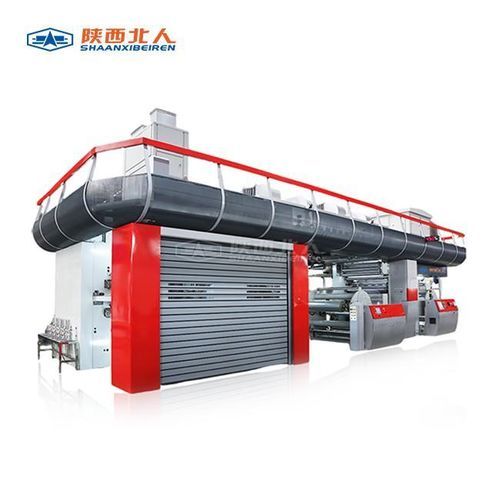

In-line flexographic press 111

8-colorfor plastic filmfor paper

Overview
Unit-type flexible plate flexographic printing machine designed for label and soft-packaging production. Delivers high registration accuracy, vivid color reproduction and fast throughput for varied runs. Typical substrate: PET film. Printing width: 800 mm. Maximum printing speed: 300 m/min. 8-color configuration.

Key Benefits

• Quick job changeovers through independent servo-driven print stations that reduce setup waste and speed transitions between jobs.
• Exceptional registration accuracy maintaining color-to-color registration within ±0.1 mm for consistent print quality.
• Versatile substrate handling including paper, PET film, BOPP, and metallic foil; handles substrates down to ~12 µm without wrinkling or telescoping.
• Inline finishing options (rotary die-cutting, cold foiling, laminating, varnishing) reduce handling and registration errors.
• Servo-controlled gearless drive and active closed-loop tension control ensure stable web handling and long-run color consistency.
• Support for multiple ink systems and high-performance curing (UV/LED) suitable for demanding label applications.

Applications
Pharmaceutical and healthcare labels (micro-text, traceability, regulatory printing). Food and beverage labels requiring vivid finishes and durability under refrigeration. Industrial and chemical drum labels needing UV and solvent resistance.

Technical Specifications

• Machine Type — Unit-type flexible plate system
• Print Width — 800 mm
• Maximum Printing Speed — 300 m/min
• Color Stations — 8
• Primary Substrate — PET film (also supports paper, BOPP, metallic foil)
• Registration Accuracy — ±0.1 mm
• Tension Control — Active closed-loop system
• Drive System — Servo-controlled gearless technology
• Ink Compatibility — UV-curable, water-based, solvent-based
• Curing System — UV/LED lamp system
• Web Handling — Roll-to-roll configuration

Manufacturer & Manufacturing Advantages
Manufacturer: Shaanxi Beiren Printing Machinery Co., Ltd. Established since 1967 with in-house machining centers and factory acceptance testing to verify registration accuracy, web tension stability, curing performance and anilox consistency.

• Customization: additional color stations, specialty coating units, alternate web widths, inline finishing modules to match production requirements.

FAQ / Operational Notes
Typical lead times depend on configuration and order confirmation. Machine architecture is optimized for both short-run economical production and long-run color consistency via closed-loop color and tension control.
