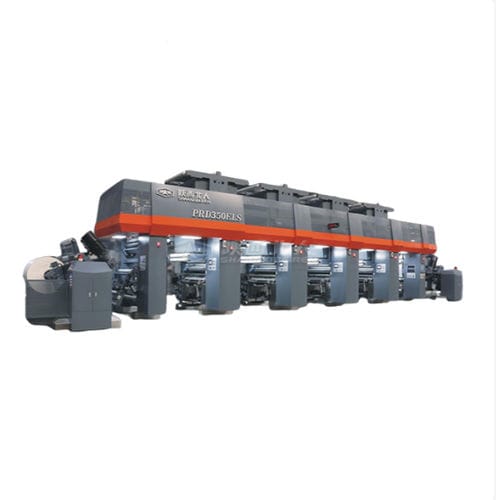

Rotogravure printing press Zhixuan 3.0plus

for paperfor packagingmulti-color

Overview
Gravure paper printing press Zhixuan 3.0plus manufactured by Shaanxi Beiren Printing Machinery Co., Ltd. Designed for wide-format decorative and packaging papers, it supports printing widths from 1330 mm to 2200 mm and paper weights from 30 to 120 g/m². Key machine elements include chrome-plated engraved cylinders, an Electronic Line Shaft (ELS) drive with independent servo motors, multi-zone drying chambers and advanced tension and pressure control for stable web handling.

Main benefits and capabilities

• High print quality with continuous-tone results provided by precision engraved, chrome-plated cylinders.
• High productivity: top speed up to 350 m/min while maintaining registration accuracy.
• Precise registration: automatic color register control and independent servo motors per color station for positioning within ±0.10 mm.
• Wide media compatibility: handles decorative, packaging and specialty papers from 30 to 120 g/m².
• Efficient drying: multi-zone high-efficiency drying chambers with heat recovery for solvent and water-based inks.
• Modular design: expandable color stations and inline finishing (rotary die-cutting, embossing) to fit production requirements.
• Built for long runs: durable components and chrome-finished cylinders reduce consumable use and maintain consistency.

Technical specifications (table representation)

• Model: Zhixuan 3.0plus Decorative product
• Printing width: 1330 mm - 2200 mm
• Material compatibility: 30–120 g/m² wide-format paper
• Maximum speed: 350 m/min
• Registration accuracy: ≤ ±0.10 mm
• Drive system: Electronic Line Shaft (ELS) with independent servo motors
• Application range: decorative, packaging and specialty papers
• Key features: thick ink laydown, high-speed operation, fine pattern reproduction, production stability

Applications

• Decorative paper production, e.g. wood-grain designs for flooring overlays and laminates.
• Specialty packaging requiring heavy ink laydown and durability through post-processing (folding, gluing, embossing, die-cutting).
• High-volume, long-run production where consistent color and repeatability are required.

Engineering, manufacturing and support

• Manufactured by Shaanxi Beiren Printing Machinery Co., Ltd. in facilities equipped with advanced machining centers and quality control.
• Design emphasizes energy efficiency (heat recovery in dryers), durability (chrome-plated cylinders) and reduced downtime.
• Machine architecture supports inline integration of finishing units and future process expansion.

Operational & intelligent features

• Automatic color register control maintaining accuracy at high speeds.
• Independent servo motors per color station for precise control of speed, impression and registration.
• Advanced tension and pressure control optimized for non-elastic paper stocks to minimize web breaks and waste.

FAQ (high-level)

• Paper weights supported: 30–120 g/m², from lightweight decorative papers to heavier packaging stocks.
• Color registration accuracy: automatic control keeps registration within ±0.10 mm at rated speeds.
• Customization: modular design allows configuration of printing width, additional color stations and inline handling units to meet production needs.

Specifications

• Model: Zhixuan 3.0plus Decorative product
• Printing width: 1330 mm - 2200 mm
• Material compatibility: 30–120 g/m²
• Maximum speed: 350 m/min
• Registration accuracy: ≤ ±0.10 mm
• Drive system: Electronic Line Shaft (ELS) with independent servo motors
