Shaanxi Beiren Printing Machinery Co.,Ltd

Rotogravure printing press
for paperfor labelsfor packaging

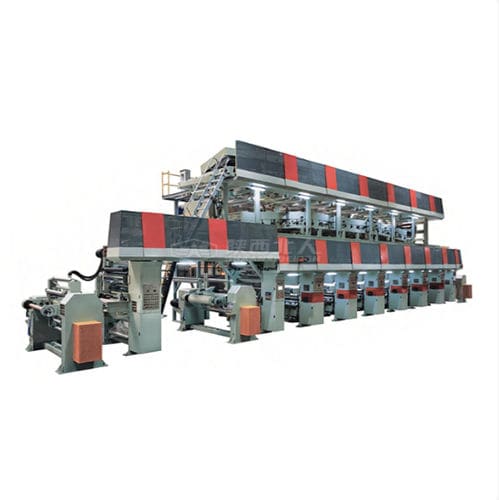

Rotogravure printing press - Shaanxi Beiren Printing Machinery Co.,Ltd - for paper / for labels / for packaging

Rotogravure printing press - Shaanxi Beiren Printing Machinery Co.,Ltd - for paper / for labels / for packaging

Add to favorites

Compare this product

Characteristics

Printing technology

rotogravure

Applications

for paper, for labels, for packaging, for BOPP film, for PE film, for PET film, for aluminum

Number of colors

2-color, multi-color

Other characteristics

automatic, high-speed, in-line, high-volume, roll-to-roll

Printing speed

Min.: 833 p/min

Max.: 2,000 p/min

Description

Overview
Manufactured by Shaanxi Beiren Printing Machinery Co., Ltd., the Color Rotogravure Printing Machine provides high-precision, photorealistic rotogravure printing for flexible packaging and other substrates. Designed for long production runs, it ensures consistent registration and accurate color reproduction across a wide range of materials from ultra-thin films to heavier substrates.

Benefits / Application advantages
Register accuracy ≤ ±0.1 mm. High throughput with short production cycles. Capable of multi-color printing in a single pass to produce rich, vivid images. Compatible with paper, plastic films (BOPP, PET, PE), metal foil and multilayer composites.

Key Technical Specifications
Registration Accuracy: ≤ ±0.1 mm (longitudinal and lateral)
Mechanical Speed: 250-600 m/min (model dependent)
Web Width Range: 600 mm - 2500 mm
Color Units: 2-12 colors (customizable)
Cylinder Circumference: 400 mm - 1300 mm
Tension Control System: 7-9 motor vector drive closed-loop
Tension Range: 3 kg - 50 kg
Residual Solvent: < 5 mg/m²
Minimum Film Thickness: 12 micron capability

Substrate versatility

Plastic films - BOPP, PET, PE with excellent ink adhesion
Paper materials - various weights and finishes
Metal foils - aluminum and specialty foils
Composite materials - multi-layer structures

Drying system excellence
The multi-zone high-efficiency drying chambers include:

High-velocity hot air nozzles strategically positioned
Thermal oil systems for consistent heat distribution
Energy recovery technology reducing operational costs
LEL monitoring systems ensuring workplace safety

Intelligent control systems

Automatic Viscosity Control (AVC) to maintain optimal ink consistency
Ultrasonic Web Edge Guides for micron-level substrate tracking
Electronic Line Shaft (ELS) Technology for synchronized printing units

Durability and color reproduction

Chrome-plated cylinders designed to withstand millions of impressions
Doctor blade assembly with 3-axis adjustment for consistent ink wiping
Fine screen capabilities (175+ lines per inch) and smooth vignettes
Electrostatic assist (ESA) to enhance ink transfer and eliminate missing dots

Production efficiency features

Non-stop operation with independent turret unwinders and rewinders and auto-splicing
Quick job changeovers via efficient cylinder mounting systems
Short production cycles enabled by high-speed operation and reliability

Applications

Flexible packaging: snack foods, confectionery, pet food
Label production: premium product labels requiring high detail
Decorative printing: wallpapers, laminates, gift wrapping
Publication gravure: high-volume magazine production

Technical specifications

Registration Accuracy: ≤ ±0.1 mm (longitudinal and lateral)
Mechanical Speed: 250-600 m/min (model dependent)
Web Width Range: 600 mm - 2500 mm
Color Units: 2-12 colors (customizable)
Cylinder Circumference: 400 mm - 1300 mm
Tension Control System: 7-9 motor vector drive closed-loop
Tension Range: 3 kg - 50 kg
Residual Solvent: < 5 mg/m²
Minimum Film Thickness: 12 micron capability
