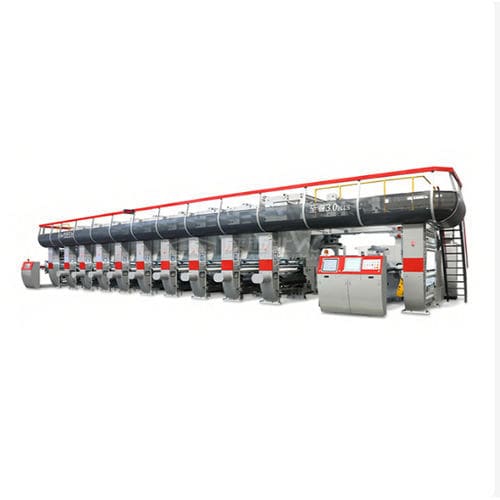

Rotogravure printing press Zhirui 3.0plus

for plasticsfor plastic filmfor packaging

Overview
The Zhirui 3.0plus rotogravure printing machine for food packaging from Shaanxi Beiren combines over 60 years of manufacturing experience with advanced gravure technology. It is designed for flexible packaging substrates (OPP, BOPP, CPP, PET, PE, Nylon) and delivers heavy ink laydown, stable color and long-run durability.

Key features and benefits
The press offers ±0.1mm registration at high speed, chrome-plated engraved barrels for extended life, multi-zone drying with VOC monitoring for reduced solvent residues, Electronic Line Shaft (ELS) with independent servo motors and automatic viscosity control to maintain Delta E < 2.0 during runs.

Product description from page
The Zhirui 3.0plus processes flexible films into food-safe packaging with vivid color and wear resistance. Its ELS architecture eliminates mechanical gear errors and shortens setup time; closed-loop tension control and a seven-motor system ensure web stability throughout long production runs.

Technical specifications (table)

• Model: Zhirui 3.0plus Gravure Printing Machine
• Printing width: 1050 mm / 1250 mm
• Printing speed: up to 350 m/min
• Color groups: configurable 6–12 colors
• Suitable materials: OPP, BOPP, CPP, PET, PE, Nylon (films down to ~12 μm)
• Drive system: Electronic Line Shaft (ELS) with independent servo motors
• Registration accuracy: ±0.1 mm
• Drying system: multi-zone hot air with VOC monitoring
• Tension control: seven-motor closed-loop system
• Barrel: chrome-plated engraved cylinders
• Ink control: automatic viscosity control, Delta E < 2.0

Applications

• Snack food packaging: chip bags, candy and biscuit pouches with metallic effects
• Retort pouches: heat-resistant films for ready meals with precise registration for lamination and sealing
• Beverage labels and shrink sleeves: controlled drying to prevent premature shrinkage
• Dairy and frozen foods: cold-seal materials for ice cream and frozen food pouches requiring accurate front-to-back registration

What makes it stand out
Substrate versatility on non-absorbent and ultra-thin films (down to 12 μm), engraved barrel ink transfer for photorealistic quality, ELS-driven operational efficiency and smart viscosity control for consistent color across long runs.

Quality & testing
Rollers are dynamically balanced to G2.5; machines undergo speed ramp tests with high-speed cameras for registration validation and solvent-residue checks by gas chromatography.
