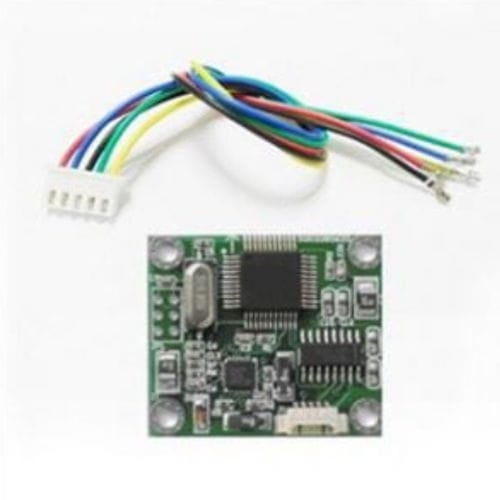

Electronic compass ER-EC-220

tilt-compensated

Low Cost 2D Electronic Compass (Single Board) It is a high-precision two-dimensional electronic compass, which measures the azimuth from 0 to 360°. It is composed of industrial microcontroller with high reliability and strong anti-interference ability, high-precision magnetic sensor drive chips, and integrates hard magnetic interference and soft magnetic interference compensation technology. It can be customized according to customer needs, and it is very convenient to quickly integrate the electronic compass function into various products. The product is small in size and low in power consumption, and can be used in many fields such as antenna stability, automotive, and system integration. Strong shock resistance, can work normally in extremely harsh environments, which is more suitable for today's miniaturized high-precision measurement. Features Measurement range 0~360° Heading accuracy 1°, tilt range ±5° Industrial grade design Input voltage DC 5V Wide temperature working -40~+85℃ With hard magnetic, soft magnetic and tilt compensation Baud rate 2400~115200 (adjustable) Working current: 40mA IP67 protection level Output RS232/RS485/TTL/MODBUS (optional) Small volume (33*27*8mm) (customizable) Applications Individual combat equipment Satellite solar antenna positioning AGV car Mining machinery, oil logging equipment Medical equipment Gimp leveling UAV positioning and navigation Tilt based monitoring Various construction machinery angle control Inspection of bridges and dams
