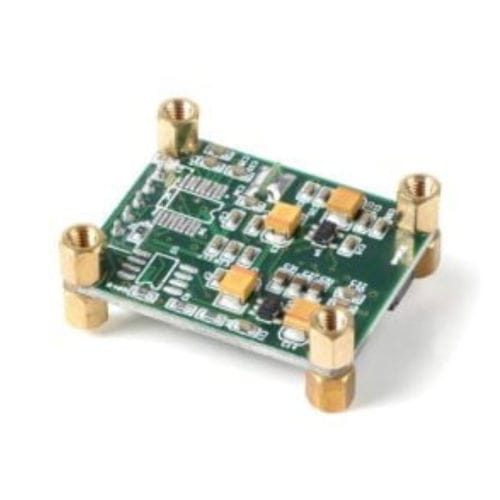

Electronic compass ER-EC-340

3Dtilt-compensated

40° Tilt Compensation - 3D Electronic Compass (Single Board) Product Description It is a high-precision three-dimensional electronic compass, which introduces the patented 3D compensation technology, making it possible to provide accurate heading data even at the tilt angle of ±40°. The product is small in size and low in power consumption, and can be used in many fields such as antenna stability, automotive, and system integration. Strong shock resistance, can work normally in extremely harsh environments, which is more suitable for today's miniaturized high-precision measurement. Features Measurement range 0~360° Heading accuracy 1°, tilt range ±40° Industrial grade design Input voltage DC 5V Wide temperature working -40~+85℃ With hard magnetic, soft magnetic and tilt compensation Baud rate 2400~115200 (adjustable) Working current: 40mA IP67 protection level Output RS232/RS485/TTL/MODBUS/CAN (optional) Small volume (33*27*8mm) (customizable) Applications Individual combat equipment Satellite solar antenna positioning AGV car Mining machinery, oil logging equipment Medical equipment Gimp leveling positioning and navigation Tilt based monitoring Various construction machinery angle control Inpection of bridges and dams
