Electronic compass ER-EC-380

3Dtilt-compensated

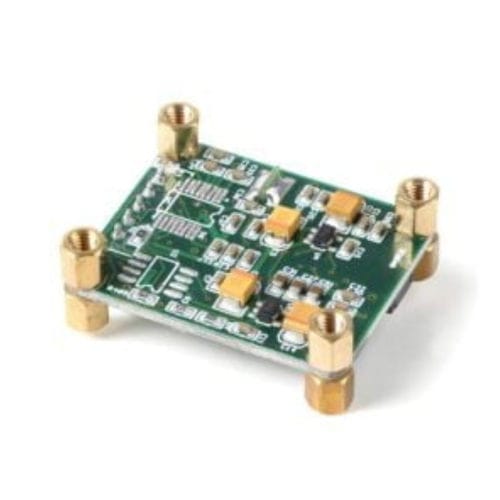

ER-EC-380 80° Tilt Compensation - 3D Electronic Compass (Single Board) Introduction ER-EC-380 is a high precision 3D electronic compass that uses both hard and soft iron calibration algorithms to provide high precision course information in the ±80° tilt range. The precise attitude of the product output carrier can be used in the system of full attitude rotation. This product has hard magnetic, soft magnetic and tilt compensation, compass output after calibration of high precision measurement. The patented three-axis fluxgate uses the CPU to calculate the heading in real time, and the three-axis accelerometer compensates for the heading angle, which can provide accurate heading and obtain data even in extremely harsh environments. With the characteristics of small size and low power consumption, it is widely used in many fields such as petroleum logging, antenna pointing, vehicle navigation, attitude system and so on. Features Measurement range 0~360° Heading accuracy 0.5°, tilt range ±80° Industrial grade design Input voltage DC 5V Wide temperature working -40~+85℃ With hard magnetic, soft magnetic and tilt compensation The baud rate is adjustable from 2400~115200 Working current: 40mA IP67 protection level Output RS232/RS485/TTL/MODBUS (optional) Small volume (33*27*8mm) (customizable) Applications Individual combat equipment Satellite solar antenna positioning AGV car Mining machinery, oil logging equipment Medical equipment Gimp leveling UAV positioning and navigation Tilt based monitoring Various construction machinery angle control Inspection of bridges and dams
