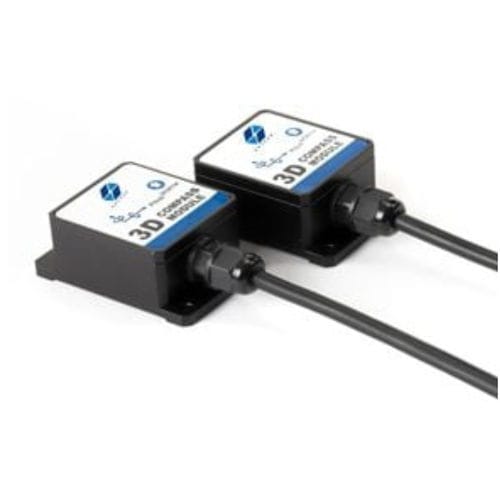

Electronic compass ER-EC-345

3Dtilt-compensated

40° Tilt Compensation – 3D Electronic Compass Introduction It is a high-precision three-dimensional electronic compass, which adopts 3D compensation technology, making it possible to provide accurate heading data even at the tilt angle of ±40°. The compass with small size, low power consumption, can be used in antenna stability, vehicle, system integration and many other fields. It is earthquake-resistant and reliable, and can work normally in extremely harsh environments, which is more suitable for today's miniaturized high-precision measurement integrated control system. Features Measurement range 0~360° Heading accuracy 1°, tilt range ±40° Industrial grade design Input voltage DC 5V Wide temperature working -40~+85℃ With hard magnetic, soft magnetic and tilt compensation Baud rate 2400~115200 (adjustable) Working current: 40mA IP67 protection level Output RS232/RS485/TTL/MODBUS/CAN (optional) Small volume (55*37*24mm) (customizable) Applications Individual combat equipment Satellite solar antenna positioning AGV car Mining machinery, oil logging equipment Medical equipment Gimp leveling UAV positioning and navigation Tilt based monitoring Various construction machinery angle control Inspection of bridges and dams
