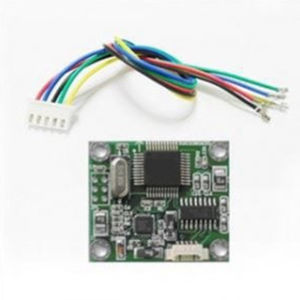

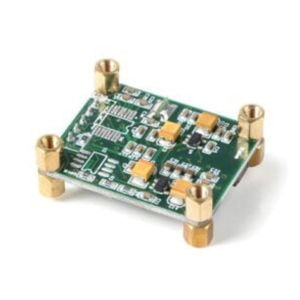

Digital magnetic compass ER-EC-365B

electronic3Dtilt-compensated

Digital Output-Full Attitude 3D Electronic Compass Product Description The ER-EC-365B is a high-precision, full-attitude 3d electronic compass that uses advanced hard and soft iron calibration algorithms to provide high-precision heading information in 360° roll, +/-90° full dip range. It has the characteristics of small volume and low power consumption and is more suitable for the measurement system with power consumption and volume sensitivity. The precise attitude of the product output carrier can be used in the system of full attitude rotation. This product has hard magnetic, soft magnetic and tilt compensation, compass output after calibration of high precision measurement. The patented three-axis fluxgate uses the CPU to calculate the heading in real time, and the three-axis accelerometer compensates for the heading angle, which can provide accurate heading and obtain data even in extremely harsh environments. Features Measurement range 0~360° Heading accuracy 0.5°, tilt range 360° Industrial grade design Input voltage DC 5V Wide temperature working -40~+85℃ With hard magnetic, soft magnetic and tilt compensation The baud rate is adjustable from 2400~115200 Working current: 40mA IP67 protection level Output RS232/RS485/TTL/MODBUS (optional) Small volume (55*37*24mm) (customizable) Applications Individual combat equipment Satellite solar antenna positioning Low AGV car Mining machinery, oil logging equipment Medical equipment Gimp leveling Uav positioning and navigation Tilt based monitoring Various construction machinery angle control Inspection of bridges and dams
