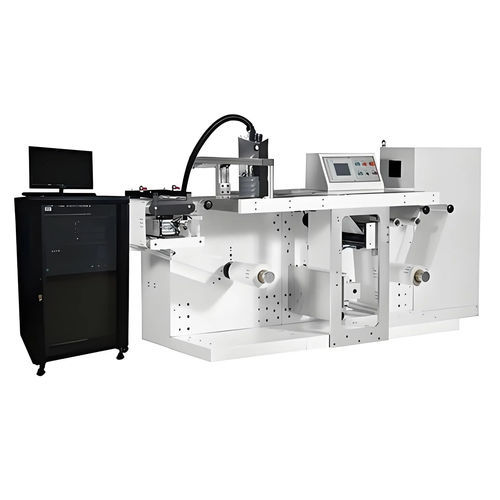

UV inkjet printing machine PIJ-K72-Separate

for packagingfor paperfor plastics

UV Piezo Inkjet K72-Separate is an advanced industrial printing solution with cutting-edge Konica 1024i printhead technology. While providing elaborate printing capabilities, the speed range is estimated to be around 70-180m/min along with a resolution ranging from 360 DPI. Some features of this printer include an independent drive system with all nozzles featuring 1024 nozzles arranged in 4 lines of 256 nozzles to enable simultaneous emission for improved print quality. The system supports various kinds of printing media, such as silk, paper, PE, PVC, OPP, BOPP, and metal surfaces. With a printing width of 71mm by nozzle and a 2000ml ink reservoir, it would perfectly fit continuous industrial applications. The printer has a water cooling system and 400W of UV LED, which ensures stable operation even during long working hours. Noteworthy features include variable data printing capabilities for GS1 codes, 2D codes, and images, supported by independently developed software. The system has robust connectivity to TIFF, JPG, BMP, PDF, CSV, and TXT. Enhanced by PLC board control and options including a plasma system and code inspection, this printer provides a dependable performance for industrial marking and coding applications. Advantages The UV Piezo Inkjet K72-Separate complements high-pressured and very accurate printing utilising the contemporary Konica 1024i technology for marking applications with excellent quality. Fast Performance 45 kHz drive frequency; more than three times fast than previous series; enables production with more than 70-180 m/min printing speed.
