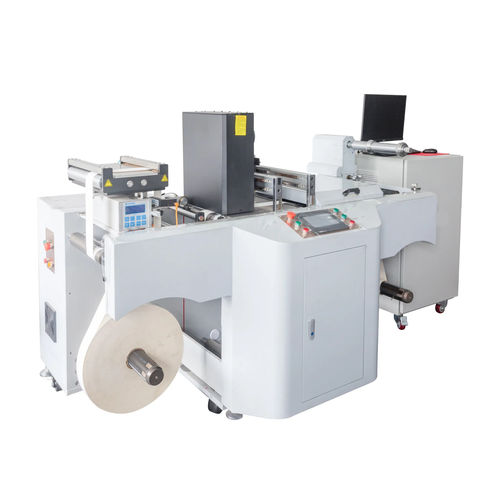

UV inkjet printer G5-Joint

DOD inkjetfor integrationmonochrome

The UV Piezo Inkjet G5-Joint is an industrial-grade high-performance printing solution for the positive food traceability codes, wide labeling, and thin films. Collected power by Ricoh Gen5 MH5420 printhead technology, great printing capabilities are given with a speed of 70-160 m/min at a resolution of 200-600 DPI. The printer comprises 1,280 nozzles, in a configurable manner in 4 x 150 DPI row-wise for high-precision output with wonderful grayscale rendering. This multi-carrier system allows printing on silk, paper, PE, PVC, OPP, BOPP, and metal. It has a powerful water cooling system and 400W of UVLED power for performance continuity and reliability. The printer is compatible with both UV and water-based inks, which are SGS-certified, with grumbles loading in a wider 2000ml ink tank. The system embodies sophisticated functionality that includes real-time data processing. Also custom-designed software allows for different file formats, specifically TIFF, JPG, BMP, and variable data printing of GS1 codes and 2D codes. With its pneumatic automatic up-down printing unit and PLC board control supplemented with optional features of plasma system and codes inspection system, the UV Piezo Inkjet G5-Joint represents a comprehensive solution for all industrial printing tasks. Advantages The UV Piezo Inkjet G5-Joint is designed for high-speed, high-resolution industrial printing in conjunction with superior features suitable for a number of applications and superior output quality. High-Performance Printing Boasting Ricoh Gen5 technology with 1,280 nozzles, this printer offers an amazing resolution of 600 DPI and speeds up to 160m/min.
