DOD inkjet printing machine G5-Separate

for paperfor textilesfor plastics

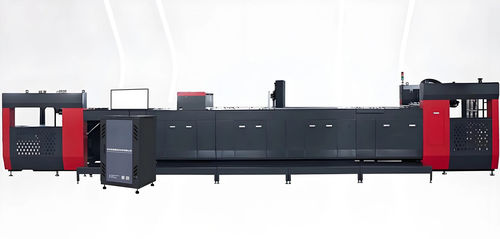

The UV Piezo Inkjet G5-Separate is a high-performance industrial printing solution that combines advanced technology with versatile functionality. Powered by Ricoh Gen5 nozzles, this printer delivers exceptional printing speeds ranging from 70 to 160m/min with resolutions of 200-600DPI. The system features a robust 54mm printing width per nozzle and specializes in monochrome printing applications. The printer is equipped with a powerful 400W/70Lamp UVLED system and an efficient water cooling system to ensure consistent performance. It supports both UV and water-based inks with SGS certification, featuring a generous 2000ml ink tank capacity. The system is compatible with various printing media including silk, paper, PE, PVC, OPP, BOPP, and metal surfaces. Notable features include support for GS1 codes, 2D codes, and variable data printing, making it ideal for food traceability codes, tags/card digital printing, narrow labels, and logo applications. The printer comes with independently developed software, running on Windows 10, and supports multiple file formats including TIFF, JPG, and BMP. With optional features such as plasma system, RIP software, and codes inspection system, this printer offers a comprehensive solution for industrial printing needs. Advantages The UV Piezo Inkjet G5-Separate combines high-speed printing, versatile media compatibility, and advanced features for superior industrial printing performance. High-Performance Printing Delivers exceptional speeds of 70-160m/min with Ricoh Gen5 nozzles and resolutions up to 600DPI. Advanced Cooling System Features efficient water cooling system and 400W UVLED power for consistent, reliable performance.
