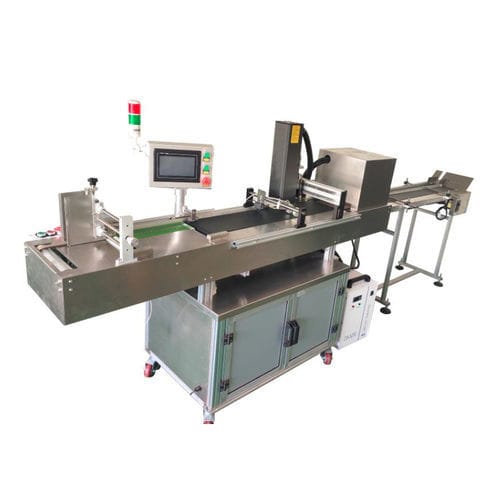

Digital printing machine

for tagsfor cardscolor

This system is a customized cards and tags automatic paging, coding, and UV curing automated packaging system based on common customer requirements. It can be customized according to actual products and can be equipped with supporting systems such as labeling and inspection system. It is mainly designed to meet the needs of users for automatic separation, labeling, coding, curing, and inspecting of cards/tags. The equipment is equipped with a PLC control system to coordinate the actions of paging, labeling, coding, curing, inspection, and rejection. Technical Specifications​ Materials size:25-150mm Materials: PVC,Paper,Metal Productivity:6000-40000 sheets/H (Above ISO 0.6mm) Transportation accuracy:parallel running direction +0.1mm(excluding card and label error) Power supply:220VAC,50HZ,3KW Machine size:3900*900*1600mm Total weight:250kgs   Contain 1. Shield type pagination [CNC machining component] 2. Diagonal guide mechanism; 3. Diagonal guide vacuum adsorption; 4. Perforated conveyor belt; 5. Vacuum adsorption device; 6. Workstation for inkjet printer; 7. UV curing lamp workstation; 8. Counting device (optional) 9. Labeling machine workstation (optional)
