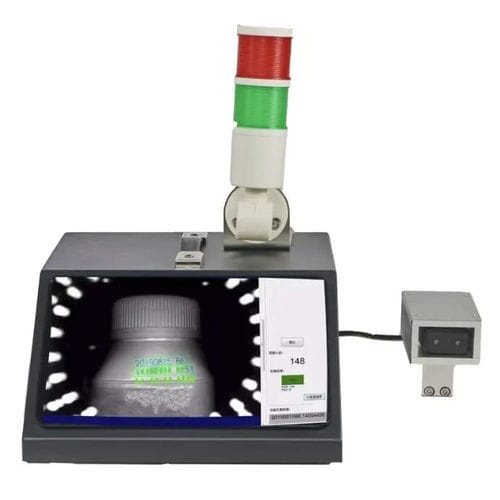

Camera inspection system TST-100

non-contactquality controlfor the printing industry

The Feature Presence Detection System (VDIS) is a state-of-the-art quality control solution designed for automated production lines. This advanced system specializes in the “presence or absence” detection of components, parts, and processing features on workpieces. With its non-contact detection capabilities, the system delivers exceptional performance, achieving high-speed inspections of up to 80,000 times per hour while maintaining superior precision. The TST-100 model features a sophisticated 300000CCD camera resolution and LED light source configuration, enabling accurate detection across various applications. It excels in multiple inspection tasks, including code-spraying verification, cutting and drilling inspection, food label examination, package content verification, printed character detection, and electronic component presence validation on circuit boards. This user-friendly system can be mastered within 10 minutes, offering stable performance and seamless integration with existing production equipment. It is particularly compatible with coding equipment such as inkjet printers, labeling machines, and laser systems. The system operates at impressive speeds of up to 20 pieces per second, with a visual detection range of 50-120mm, making it ideal for high-volume manufacturing environments. The comprehensive toolset includes pattern recognition, edge detection, pixel counting, and precise measuring capabilities, supported by multiple output signals for kick-off, warning light, and stop functions.
