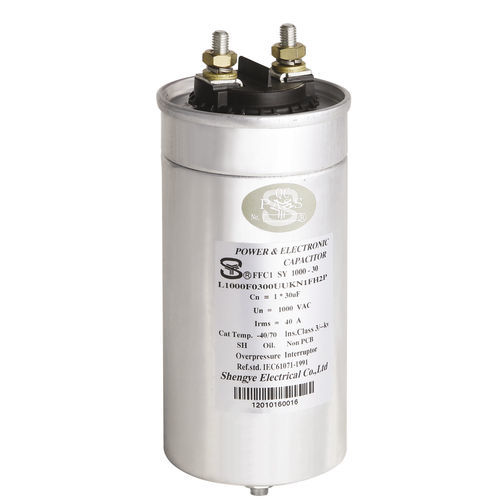

Filter capacitor FFC1
metalized polypropylene filmcylindricalscrew terminal

filter capacitor
filter capacitor
filter capacitor
Add to favorites
Compare this product


Characteristics

Type
metalized polypropylene film
Configuration
cylindrical, screw terminal
Technical characteristics
heavy-duty, filter, self-healing, AC, high-frequency
Applications
industrial, for UPS, for power electronics, for high-frequency applications, for inverters, rail, for welding machines
Voltage

Min.: 230 V

Max.: 1,000 V

Capacitance

Min.: 30 µF

Max.: 270 µF

Description

Product features High frequency AC filter capacitor - FFC1SY Products are mainly used in photovoltaic inverter, wind power converter, inverter welding machine, electric locomotive, UPS, EPS, SVG's last stage filtering. General technical parameters Reference standard:IEC 61071-2007 , UL810 Dielectric: Metallic polypropylene film Filler: inert gas, epoxy, or silicone oil Shell: aluminum case Structure: no feeling volume, built over pressure cut off safety protection Performance parameters Capacity range 30μF~270 μF(25℃) Rated voltage 230 VAC~1000 VAC Capacity deviation ±10% (standard), ±5% (upon request) Dielectric loss tanσ≤0.0002(100Hz,25℃) Maximum operating frequency ≤20kHz Working temperature -40℃~+70℃ Storage temperature - -40℃~+85℃ Altitude - ≤2000m Life expectancy - 100,000 hours at Un and 70℃ Test voltage Electrode pressure (Ut-t):1.5Un(AC) / 10s (25℃) 1.75Un(DC) / 10s (25℃) Extreme pressure (Ut-c):3000VAC / 2s (50/60Hz, 25℃)
