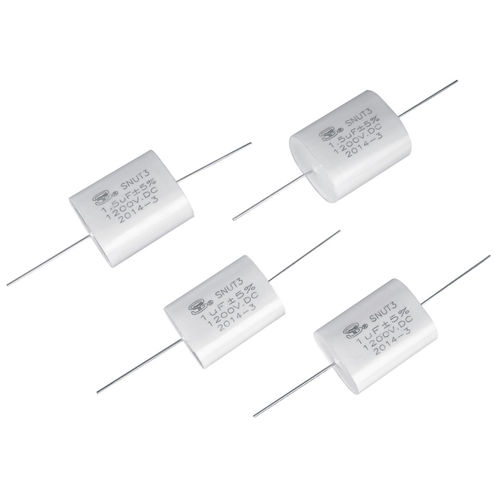

Snubber capacitor SNUT3
metalized polypropylene filmaxialdry

snubber capacitor
snubber capacitor
Add to favorites
Compare this product


Characteristics

Type
metalized polypropylene film
Configuration
axial
Technical characteristics
dry, snubber, non-inductive, high-pulse
Applications
industrial, for UPS, for power electronics, for DC/DC converters
Voltage

Min.: 700 V

Max.: 3,000 V

Capacitance

Min.: 0.1 µF

Max.: 6.8 µF

Description

Main features 1.Can withstand high pulse current; 2.Can withstand high RMS current; 3.High reliability, long service life. Application field 1.Frequency converter; 2.Converter; 3.Uninterrupted power supply; 4.Industrial drive. Performance parameters Capacity range 0.1μF ~ 6.8μF(25℃) The rated voltage - 700VDC~ 3000VDC Capacity of the deviation ±10% (standard), ±5% (upon request) The dielectric Metallized polypropylene Dielectric loss - tanδ≤0.0006(1000Hz,25℃) Time constant - C≤0.33μF,RC≥15000S; C>0.33μF,RC≥5000S Operating temperature - -40℃~+85℃ Core temperature - ≤+85℃ Storage temperature - -40℃~+85℃ The altitude ≤2000m Life expectancy 100,000 hours at Un and θh≤70℃ Electrode pressure - 1.5Un / 10s at 25℃ structure - Dry type, with resin sealing, Non-inductive, Antiflaming Lead - Cylindrical capacitor body with axial screw and thread connections The reference standard IEC61071-2007, UL94V-0
