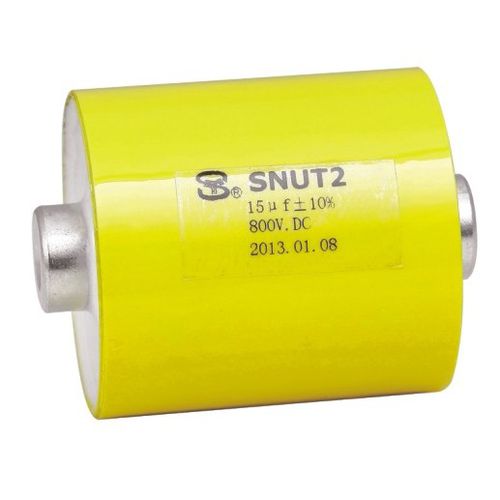

Snubber capacitor SNUT2
metalized polypropylene filmaxialscrew terminal

snubber capacitor
snubber capacitor
Add to favorites
Compare this product


Characteristics

Type
metalized polypropylene film
Configuration
axial, screw terminal
Technical characteristics
dry, snubber, non-inductive, high dv/dt, high-pulse, DC
Applications
industrial, for UPS, for power electronics, for DC/DC converters, DC link
Voltage

Min.: 800 V

Max.: 1,000 V

Capacitance

Min.: 5 µF

Max.: 100 µF

Description

Main features 1.can withstand high pulse current; 2.can withstand high RMS current; 3.High reliability, long service life. Application field 1.Frequency converter; 2.Converter; 3.Uninterrupted power supply. 4.Industrial drives. Technical parameters Capacity range 5μF ~ 100μF(25℃) The rated voltage - 800VDC~ 1000VDC Capacity of the deviation ±10% (standard), ±5% (upon request) The dielectric Metallized polypropylene Dielectric loss tanδ≤0.0006(1000Hz,25℃) Time constant C≤0.33μF,RC≥15000S; C>0.33μF,RC≥5000S Operating temperature -40℃~+85℃ Core temperature ≤+85℃ Storage temperature -40℃~+85℃ The altitude ≤2000m Life expectancy 100,000 hours at Un and Th≤70℃ Electrode pressure 1.5Un / 10s at 25℃ structure Dry type, with resin sealing, Non-inductive, Antiflaming Lead Cylindrical capacitor body with axial screw and thread connections The reference standard IEC61071-2007, UL94V-0
