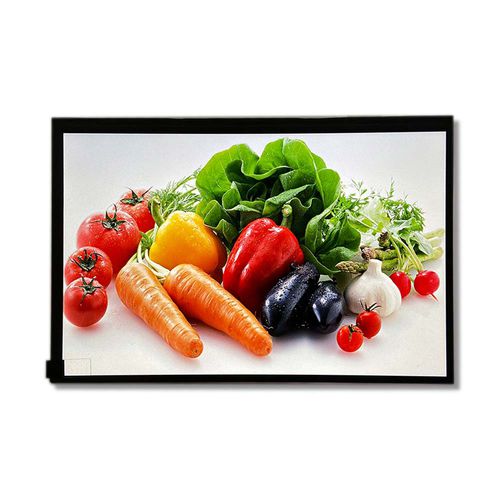

HG101WU056 | 10.1 inch TFT LCD Panel | High Resolution | 1920x1200 | MIPI Interface | IPS Display |
This 10.1-inch TFT LCD panel, featuring high resolution and excellent visual performance. With a resolution of 1920x1200 pixels and IPS technology, this display delivers stunning visuals and accurate color reproduction.
The IPS technology employed in this panel offers wide viewing angles, allowing you to enjoy consistent and accurate colors from various positions.
The 10.1-inch size strikes a balance between portability and usability, making it suitable for various applications such as tablets, portable monitors, automotive displays, and industrial devices. Its compact form factor ensures versatility and ease of integration into different systems.
Hongguang Display offers the option of a custom solution with either a capacitive or resistive touchscreen.
The material is RoHS-compliant.
Diagonal: 10.1 (inch)
Resolution: 1290x1200 (pixel)
Display Type: IPS
Display Mode: Normally Black
Optimal View: ALL
Touch Screen: Custom
Module Dimensions: 228.30 x 149.05 x 2.70 (mm) (W x H x D)
Active Area: 216.81 x 135.50 (mm) (W x H)
Luminance: 400 (cd/m2)
Interface: MIPI
Operating Temperature: -20~+70 (°C)
Storage Temperature: -30~+80 (°C)
