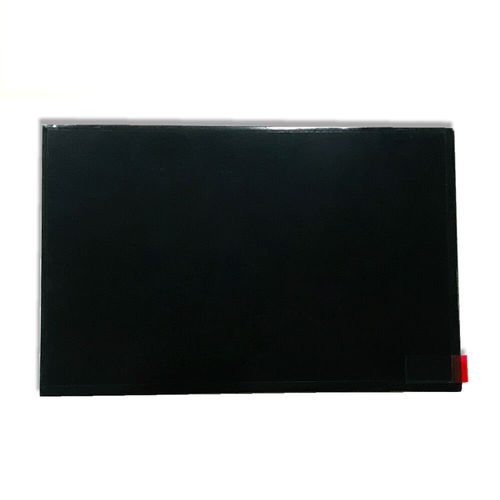

LCD/TFT display module HG101WX030

IPS1280 x 80010.1"

HG101WX030 | 10.1 inch TFT LCD Screen | IPS Display | 1280x800 Resolution | LVDS Interface | The 10.1-inch TFT LCD screen is a high-quality display that features an IPS panel, providing excellent image quality and wide viewing angles. With a resolution of 1280x800, it delivers crisp and detailed visuals, making it perfect for various applications ranging from entertainment to work. Furthermore, the 10.1-inch TFT LCD display boasts a compact form factor and lightweight design, making it suitable for diverse application scenarios. Whether it's embedded systems, industrial controls, medical devices, or portable equipment, it can be easily integrated and installed. Hongguang Display offers the option of a custom solution with either a capacitive or resistive touchscreen. The material is RoHS-compliant. Diagonal: 10.1 (inch) Resolution: 1280x800 (pixel) Display Type: IPS Display Mode: Normally Black Optimal View: ALL Touch Screen: Custom Module Dimensions: 229.46 x 149.20 x 5.91 (mm) (W x H x D) Active Area: 216.96 x 135.60 (mm) (W x H) Luminance: 300 (cd/m2) Interface: LVDS Operating Temperature: -20~+60(°C) Storage Temperature: -30~+70 (°C)
