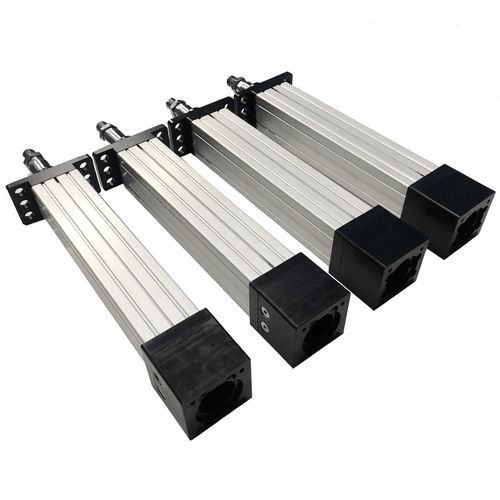

Electric cylinder DGRLT-64aluminumfor robotsprecision
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Material
- aluminum
- Applications
- for robots
- Other characteristics
- precision, in-line
- Stroke
Max.: 1,200 mm
(47.244 in)Min.: 10 mm
(0.394 in)- Rod diameter
16 mm
(1 in)- Force
0.7 kN, 1 kN, 1.36 kN, 2 kN, 2.03 kN
- Torque
1.27 Nm, 1.3 Nm, 1.9 Nm, 1.91 Nm, 3.8 Nm
(0.937 ft.lb, 0.959 ft.lb, 1.401 ft.lb, 1.409 ft.lb, 2.803 ft.lb)- Motor power
400 W, 750 W
(0.54 hp, 1.02 hp)- Speed
Max.: 1,000 mm/s
Min.: 250 mm/s
125 mm/s, 166 mm/s, 250 mm/s, 333 mm/s, 500 mm/s
- Repeatability
0.01 mm, 0.02 mm
(0.0004 in, 0.0008 in)
Description
Electric Cylinder DGRLT-64 belongs to light duty type of cylinder. It adopts simple but precise design model, offering customers a nice experience in practical use. The model is compatible with DMX512 protocol, used for controlling the movement of LED screens for 3D robotic billboard application. Working for non-stop 24 hour 100% duty cycle is supported. The Servo Electric Cylinder offers a wide range of stroke lengths and load capacities, making it suitable for a variety of applications. It is also highly versatile, with options for different mounting styles and configurations.
