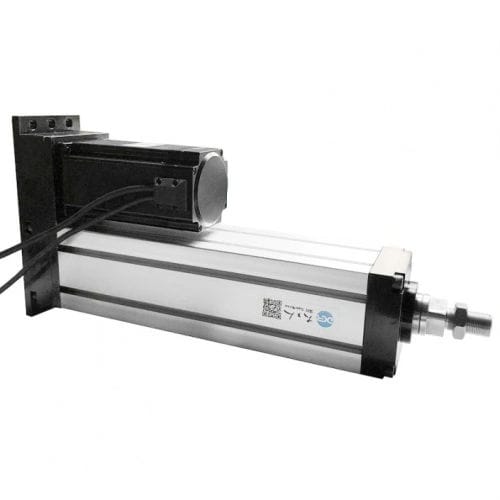

Electric cylinder DGRST-120ball screwsteelDC
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Technology
- ball screw
- Material
- steel
- Motor
- DC, AC
- Applications
- industrial
- Other characteristics
- standard, high-force, high-efficiency, in-line
- Stroke
Min.: 10 mm
(0.394 in)Max.: 1,500 mm
(59.055 in)- Rod diameter
32 mm
(1 in)- Force
7.65 kN, 10.2 kN, 11.47 kN, 15.29 kN, 22.94 kN
- Torque
9.55 Nm, 14.32 Nm, 28.65 Nm, 42.97 Nm
(7.044 ft.lb, 10.562 ft.lb, 21.131 ft.lb, 31.693 ft.lb)- Motor power
2,000 W, 4,500 W
(2.72 hp, 6.12 hp)- Speed
111 mm/s, 166 mm/s, 250 mm/s, 500 mm/s, 800 mm/s
- Repeatability
0.01 mm, 0.02 mm
(0.0004 in, 0.0008 in)
Description
Electric Cylinder DGRST120 refers to the standard model of cylinder. Heavy Duty Electric Cylinder DGRST120 can work with AC motor, DC motor, which is high precision. The product is posessed features of closed-loop servo control, low maintenance cost, and flexible configuration.
High Thrust Force Linear Actuator: You can choose Inline type or Parallel type for different usage to fit your own product program.
It is widely used in fields such as automation equipment, industrial machinery and equipment. It is an efficient and intelligent equipment that can improve the production efficiency and quality of products, reduce manual operations and labor intensity, and has flexibility, adjustability, and accuracy. The characteristics of control and high efficiency are an important part of modern industrial automation and have broad application prospects in the production industry.
