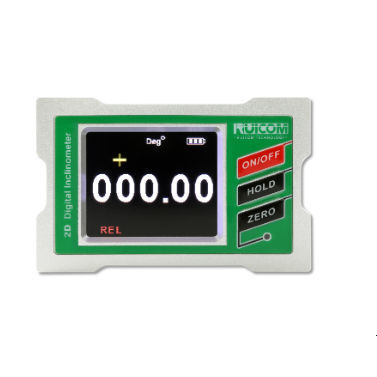

2-axis inclinometer GDS4 series

1-axisUSBtemperature-compensated

Product Introduction
The GDS4 series is a high-precision electronic level instrument independently developed by RUICOM Technology for angle control and measurement in industrial applications. Its core integrates a micro-mechanical control system and a dual-core measurement unit, allowing real-time compensation on the X axis via the Y axis during measurement. Combined with cross-compensation and temperature-compensation algorithms, the device applies micro-mechanical electronic computation to ensure long-term measurement stability and repeatability.

Key features

• Accuracy: 0.05°
• Angle resolution: 0.01°
• Operating temperature: -10 ℃ to +70 ℃
• Range: single axis ±180°, dual axis ±90°
• Absolute/relative measurement

Performance Parameters (table)

• Models: GDS41180 (single axis), GDS4290 (dual axis)
• Measurement axis: GDS41180 — Single axis; GDS4290 — Dual axis
• Angle measurement range: GDS41180 — ±180°; GDS4290 — ±90°
• Angle measurement accuracy: 0.05° (full range)
• Angle measurement resolution: 0.01°
• mm/m measure range: ±999.9 mm/m
• mm/m measurement accuracy: 0.9 mm/m (full range)
• mm/m measurement resolution: 0.1 mm/m
• LCD visible area: 40 × 32 mm
• Working temperature: -10 ~ +70 ℃
• Working humidity: up to 85 %RH
• Power supply: 3.7V rechargeable lithium battery
• Ideal charging time: ~3 h
• Battery continuous working time: ~8 h (±0.5 h)
• Data output signal: USB
• Anti-vibration: 10 g @ 11 ms, 3 axial (half sinusoid)
• Impact resistance: 10 grms, 10–100 Hz
• Ingress protection: IP54
• Material: Metal aluminum
• Size: 83 × 19 × 53 mm
• Weight: ≤140 g

Characteristics / Technical specifications

• Series: GDS4
• Models available: GDS41180 (single axis ±180°), GDS4290 (dual axis ±90°)
• Full-range angle accuracy: 0.05°
• Angle resolution: 0.01°
• mm/m range and accuracy: ±999.9 mm/m; 0.9 mm/m accuracy; 0.1 mm/m resolution
• Display: LCD visible area 40 × 32 mm
• Environmental: operating temperature -10 ℃ to +70 ℃; up to 85 %RH humidity
• Power: 3.7V rechargeable lithium battery, ~3 h ideal charge, ~8 h runtime (±0.5 h)
• Interfaces: USB data output
• Mechanical resistance: anti-vibration 10 g @ 11 ms (3 axial), impact 10 grms (10–100 Hz)
• Protection: IP54
• Construction: aluminum metal housing
• Dimensions & weight: 83 × 19 × 53 mm; ≤140 g
